12" AdvanEdge Fabricated Vertical Wye (AdvanEdge Fittings)

Filename:
12" AdvanEdge Fabricated Vertical Wye (AdvanEdge Fittings).pdf

Download Document (pdf) View in Browser
12" AdvanEdge Fabricated Vertical Wye (AdvanEdge Fittings)

This document is the 12” AdvanEdge Fabricated Vertical Wye (AdvanEdge Fittings). Diagrams with table provided.

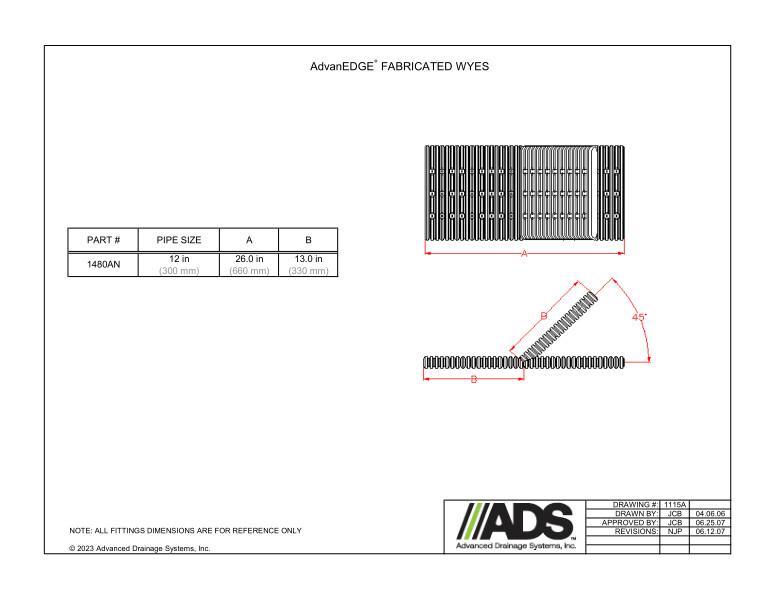

The AdvanEDGE Fabricated WYE diagram shows the A dimension. A second detail shows the B dimension with a 45 degree arc.

The table provides the values for Part number, pipe size and A/B dimensions.

All fittings dimensions are for reference only.
