SaniTite® HP Triple Wall Pipe
SaniTite HP (High Performance) Triple Wall Pipe couples advanced polypropylene resin technology with a proven and exclusive triple wall (30” - 60”) profile design for superior performance and durability. SaniTite HP meets and exceeds typical standards for pipe stiffness and joint integrity. When specifying pipe per ASTM F2764* on a gravity flow sanitary sewer project, you are specifying the most stringent performance requirements in the industry.
Product Variations & Specifications
Product Specs
Product Details
Product Details
Documentation
Documentation
Product Specifications
| Triple Wall Pipe | |
|---|---|
| Diameters Available | 3" (75mm) and 4" (100mm) |
| Lengths Available | 10' (3m) |
| Joint Performance | Not Specified |
| Joining System | Bell and Spigot |
| Specifications | ASTM F810 |
Product Details
Overview
SaniTite Triple Wall Pipe is manufactured with enhanced pipe stiffness, beam strength and joint integrity, for a long-lasting life. The bell and spigot joining system provides an added factor of safety for design engineers by including polymer-reinforced bells and double gasket spigots on every stick of pipe.
Features and Benefits
- Increased stiffness yields an additional safety factor against construction loading and poor installations

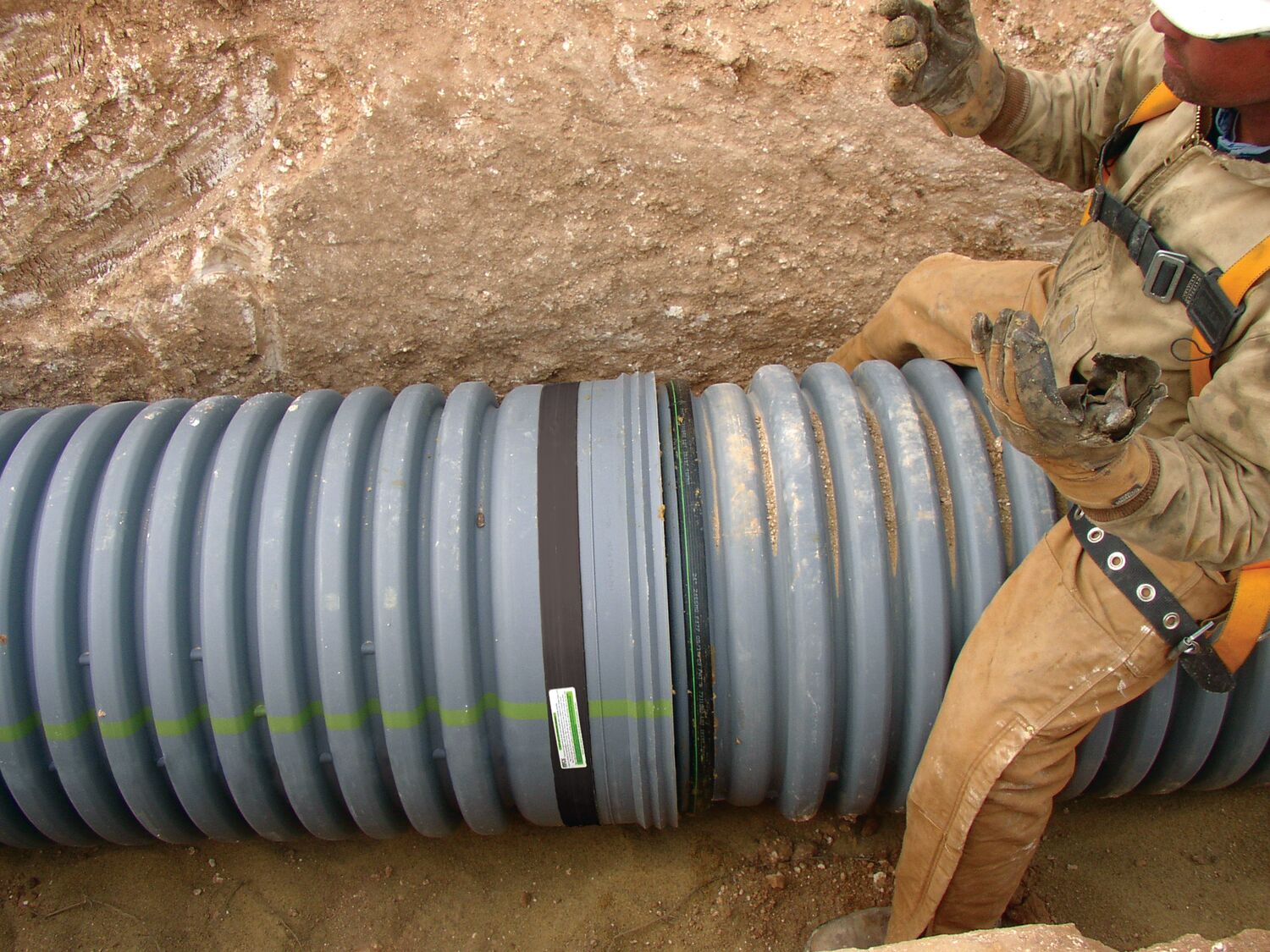

- The extended bell and spigot joint with redundant, double-gasketed joints meets ASTM D3212 and ensures lab and field testable watertight performance
- Meets industry standards for manhole connections, testing and installation
- Inert PP material is resistant to the effects of chemicals, abrasion, hot soils, and caustic effluent
- Lightweight product for best installed cost for maximizing delivery and installation efficiencies
- Readily available in convenient locations to service local projects
