2' x 2' Curb Inlet Standard Locking Grate Assembly Nyloplast Detail

Filename:
2' x 2' Curb Inlet Standard Locking Grate Assembly Nyloplast Detail.pdf

2' x 2' Curb Inlet Standard Locking Grate Assembly Nyloplast Detail

This document is the 2' x 2' Curb Inlet Standard Locking Grate Assembly Nyloplast Detail. Illustrations show the various components with descriptions.

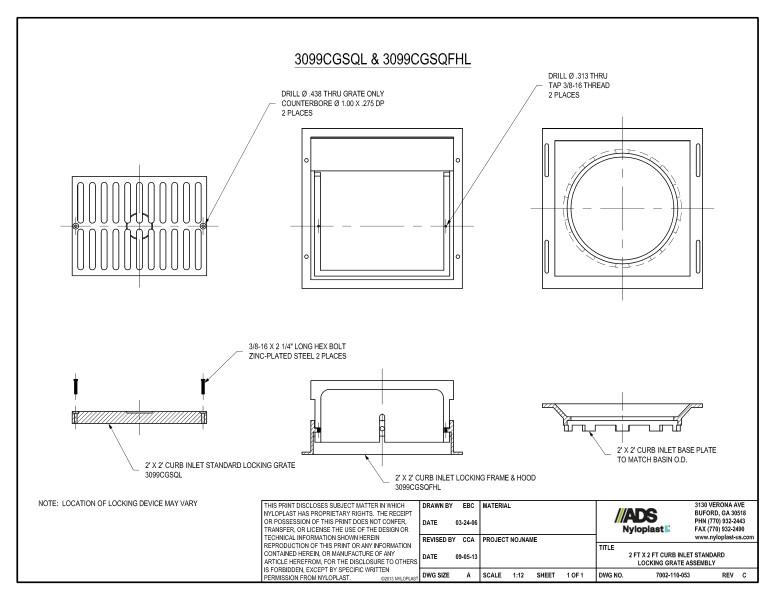

The illustration shows the drill thru on grate, drill thru tap in 2 places on frame, the 2’ x 2’ curb inlet standard locking grate with 3/8-16 x 2 ¼” long hex bolt zinc plated steel in 2 places, the 2’ x 2’ curb inlet standard locking frame & hood and the 2’ x 2’ curb inlet base plate to match basin.

A note mentions that location of locking device may vary.
