2' x 3' Rectangle Curb Inlet Base Plate General Dimensions Nyloplast Detail

Filename:
2' x 3' Rectangle Curb Inlet Base Plate General Dimensions Nyloplast Detail.pdf

Download Document (pdf) View in Browser
2' x 3' Rectangle Curb Inlet Base Plate General Dimensions Nyloplast Detail

This document is the 2' x 3' Rectangle Curb Inlet Base Plate General Dimensions Nyloplast Detail. Illustrations show the various components with descriptions.

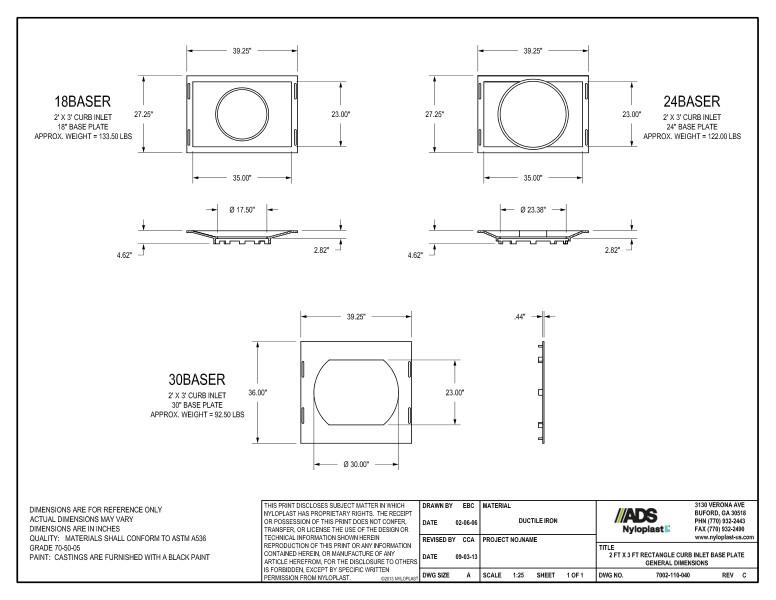

The illustration shows the 18”, 24” and 30” base plates, all with 2’ x 3’ curb inlets and corresponding weights.

Notes detail that dimensions are for reference only and in inches. Materials shall conform to ASTM A536 grade 70-50-05. Castings are furnished with a black paint.

2' x 3' Rectangle Curb Inlet Base Plate General Dimensions Nyloplast Detail
