StormTech Underdrain Detail
Filename:
StormTech Underdrain Detail.pdf
![StormTech Underdrain Detail](https://assets.adspipe.com/m/4e097c3a153942/webimage-StormTech-Underdrain-Detail.jpg)

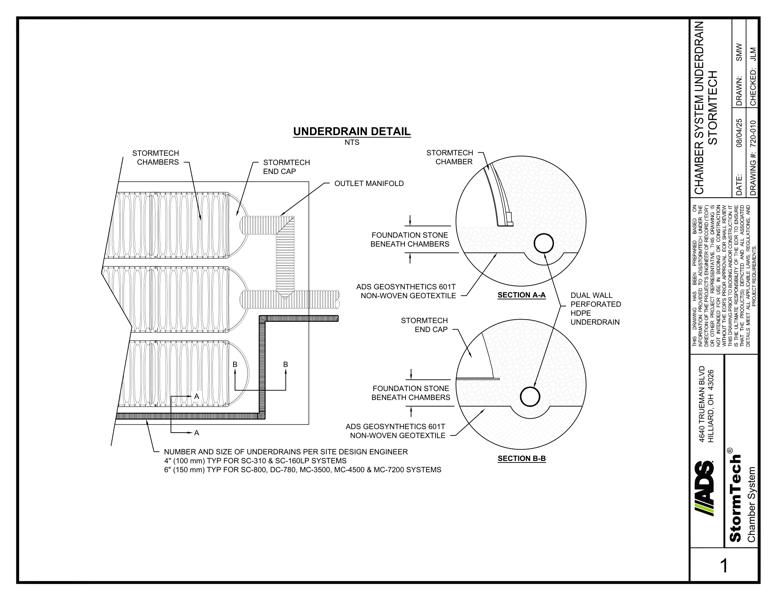

StormTech Underdrain Detail.
This document is the StormTech Underdrain Detail. A cross section of the underdrain is shown.
In the cross section, details show the StormTech chambers and end cap and the outlet manifold.
Section A-A inset shows the StormTech Chamber, foundation stones beneath the chambers, ADS geosynthetics 601T non-woven textile with dual wall perforated HDPE underdrain.
Section B-B inset shows the StormTech end cap, foundation stones beneath the chambers, ADS geosynthetics 601T non-woven textile with dual wall perforated HDPE underdrain.
A note below describes how the number and size of underdrains, either 4” or 6” for specific models are approved through the site design engineer.
