30" Standard Locking Grate Assembly Nyloplast Detail

Filename:
30" Standard Locking Grate Assembly Nyloplast Detail.dwg

30" Standard Locking Grate Assembly Nyloplast Detail

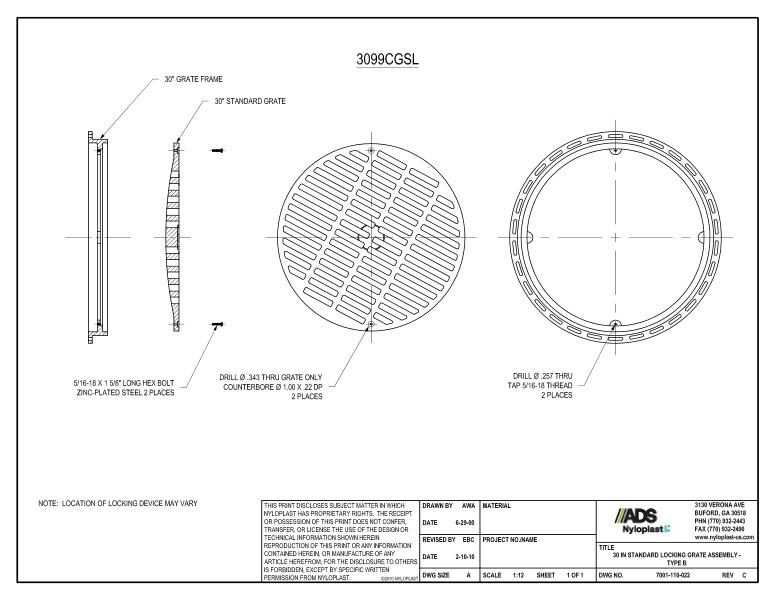

This document is the 30" Standard Locking Grate Assembly Nyloplast Detail. It shows illustrations with descriptions.

The side view illustrations show the 30” grate frame & 30” standard grate with 5/16-18 x 1 5/8” long hex bolt zinc-plated steel in 2 places. The top down view shows the grate with drill thru position and the frame drill thru thread position.

A note states that the location of locking device may vary.
