30 x 24 HP Wye Nyloplast Detail

Filename:
30 x 24 HP Wye Nyloplast Detail.pdf

Download Document (pdf) View in Browser
30 x 24 HP Wye Nyloplast Detail

This document is the 30 x 24 HP Wye Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

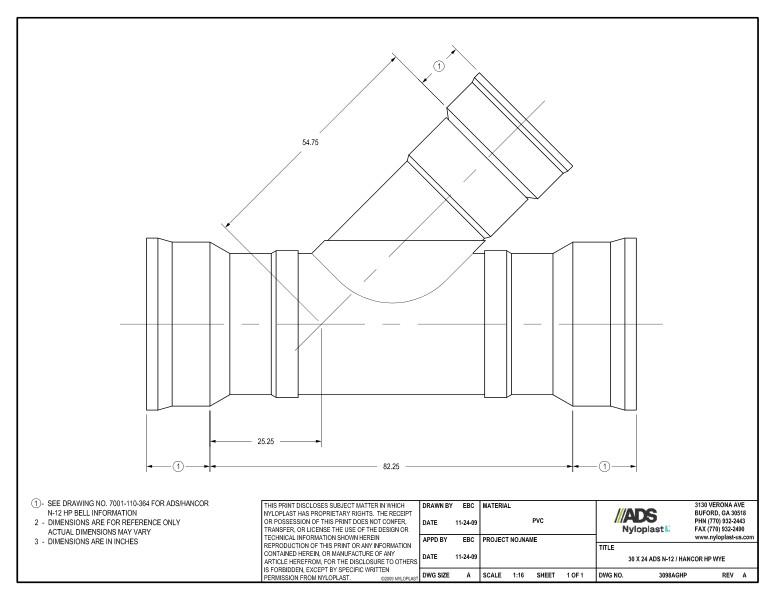

An illustration showing the dimensions is provided.

30 x 24 HP Wye Nyloplast Detail
