15 x 4 HP Tee with Gasketed SWR Bell Nyloplast Detail
Filename:
15 x 4 HP Tee with Gasketed SWR Bell Nyloplast Detail.pdf
![15 x 4 HP Tee with Gasketed SWR Bell Nyloplast Detail](https://assets.adspipe.com/m/3b9dd7ccc2d6d6a0/webimage-15-x-4-HP-Tee-with-Gasketed-SWR-Bell-Nyloplast-Detail.jpg)

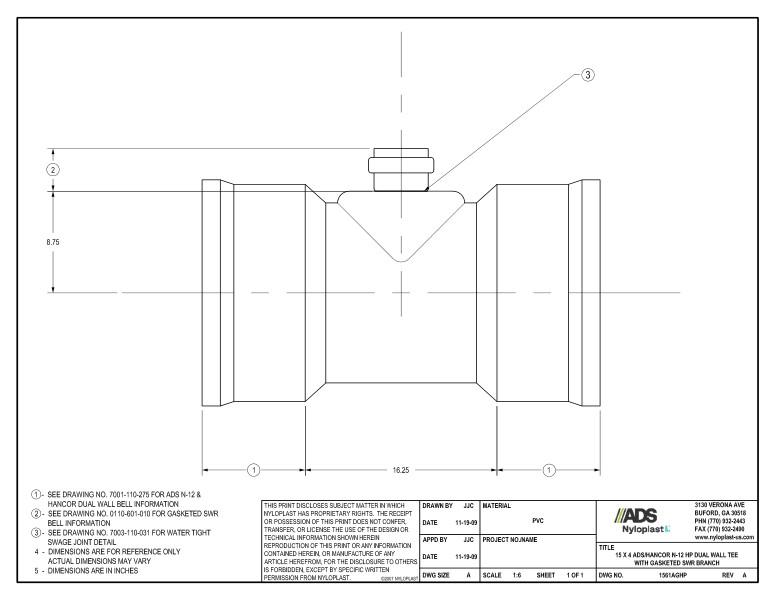

This document is the 15 x 4 HP Tee with Gasketed SWR Bell Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 Dual Wall Bell for more information. A note on dimension 2 references Gasketed SWR Bell for more information. Note 3 refers to drawing for water tight SWAGE joint detail. Note 4 states that dimensions are for reference only. Note 5 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
