PC+ Inlet Filter (Nyloplast Unit) Detail

Filename:
PC+ Inlet Filter (Nyloplast Unit) Detail.dwg

Download Document (dwg)
PC+ Inlet Filter (Nyloplast Unit) Detail

This document is the PC+ Inlet Filter (Nyloplast Unit) Detail. A Flexstorm PC

+ inlet filter detail with descriptions and dimensions shown.

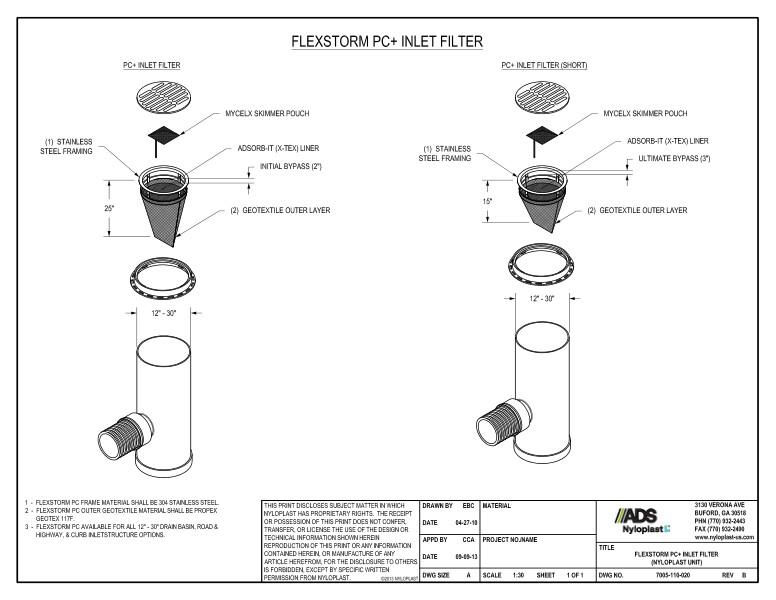

An illustration shows the PC+ Inlet Filter mycelx skimmer pouch, absorb-IT (X-TEX) liner, stainless steel framing, initial bypass and geotextile outer layer. A short PC+ Inlet Filter detail shows mycelx skimmer pouch, absorb-IT (X-TEX) liner, stainless steel framing, ultimate bypass and geotextile outer layer.

Note 1 states that Flexstorm PC frame material shall be 304 stainless steel. Note 2 explains that the Flexstorm PC outer geotextile material shall be propex geotex 117F. Lastly, Flexstorm PC available for all 12” – 30” drain basin, road & highway and curb inlet structure options.

PC+ Inlet Filter (Nyloplast Unit) Detail
