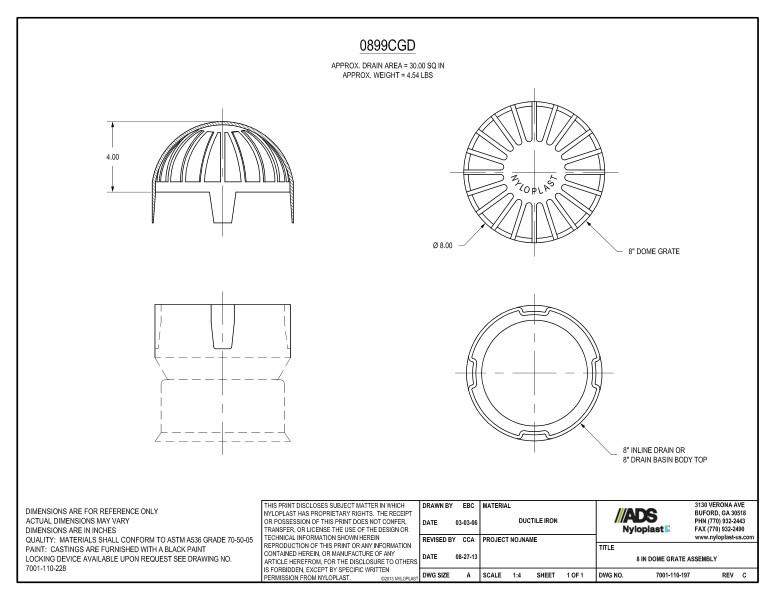

This document is the 8" Dome Grate Assembly (Inline Drain) Nyloplast Detail. It shows the nyloplast ductile dome grate with dimensions.

The illustration shows the nyloplast 10” dome grate with dimensions for approximate drain area of 30.00 SQ inches and approximate weight of 4.54 LBS. A top and side view is shown. 8” inline drain or 8” drain basin body top illustration included.

Notes detail that dimensions are for reference only and in inches. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. The locking device is available upon request.
