36" x 80" Ductile Iron Base Plate to Fit 30" Drain Basin Nyloplast Detail

Filename:
36" x 80" Ductile Iron Base Plate to Fit 30" Drain Basin Nyloplast Detail.pdf

Download Document (pdf) View in Browser
36" x 80" Ductile Iron Base Plate to Fit 30" Drain Basin Nyloplast Detail

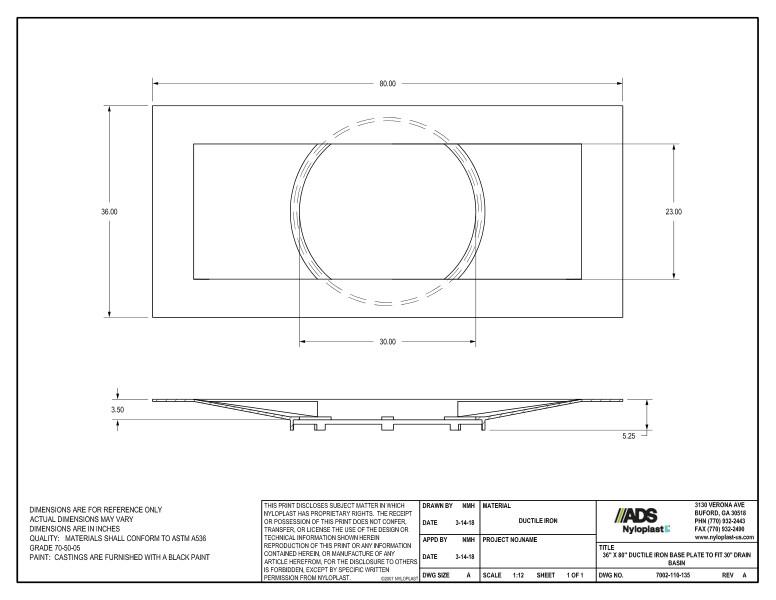

This document is the 36” x 80” Ductile Iron Base Plate to Fit 30” Drain Basin Nyloplast Detail. Dimensions and nyloplast illustration shown.

Notes state that dimensions are for reference only and are in inches. The quality of the materials shall conform to ASTM A536, Grade 70-50-05. Castings are furnished with a black paint.

36" x 80" Ductile Iron Base Plate to Fit 30" Drain Basin Nyloplast Detail
