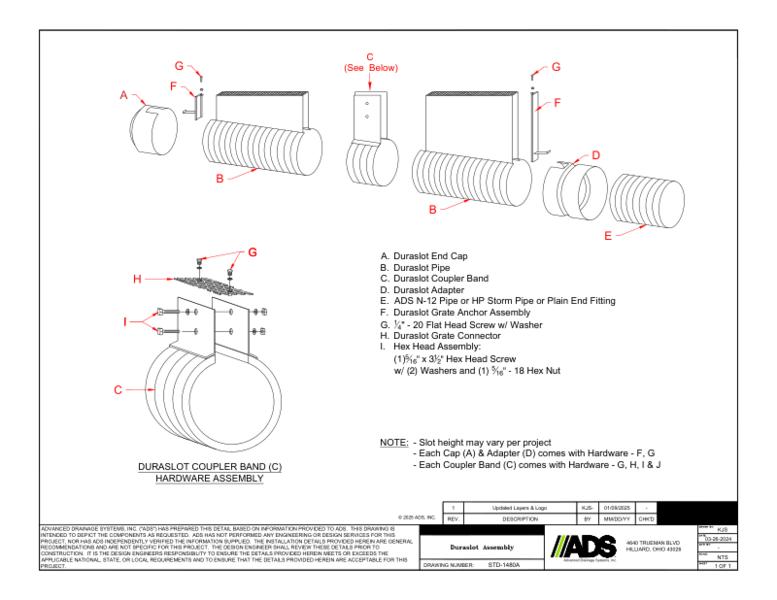

This document shows the 1480A Duraslot Assembly. Details of the Duraslot assembly with component locations and notes provided.

The details show the component locations for Duraslot end cap, Duraslot pipe, Duraslot coupler band, Duraslot adapter, ADS N-12 pipe or HP Storm Pipe or pain end fitting, Duraslot grate anchor assembly, flat head screw with washer, Duraslot grate connector and hex head assembly. The Duraslot coupler band hardware assembly detail is included.

Notes state that if the slot height may vary with project, each cap comes with hardware and each coupler band comes with hardware.
