10" Solid Cover Assembly (Drain Basin) Nyloplast Detail

Filename:
10" Solid Cover Assembly (Drain Basin) Nyloplast Detail.dwg

Download Document (dwg)
10" Solid Cover Assembly (Drain Basin) Nyloplast Detail

This document is the 10" Solid Cover Assembly (Drain Basin) Nyloplast Detail. It shows the nyloplast ductile dome grate and frame with dimensions.

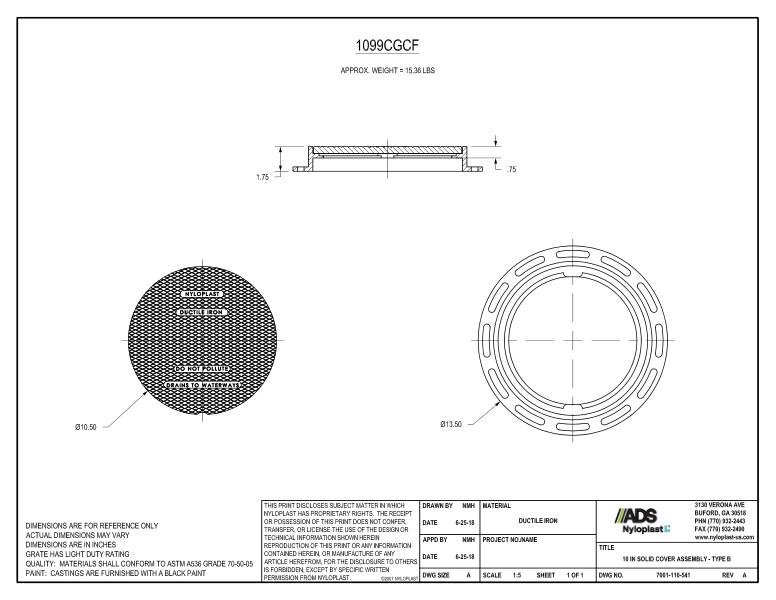

The top down illustration shows the nyloplast ductile iron grate with dimensions with approximate weight of 15.36 LBS. A top view of the frame and side view is shown.

Notes detail that dimensions are for reference only and in inches. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Grate has light duty rating. Castings are furnished with a black paint.

10" Solid Cover Assembly (Drain Basin) Nyloplast Detail
