12" - 60" Adapter Fitting (HDPE Dual Wall Miscellaneous Fittings)

This document is the 12” x 60” Adapter Fitting (HDPE Dual Wall Miscellaneous Fittings). A diagram with table provided.

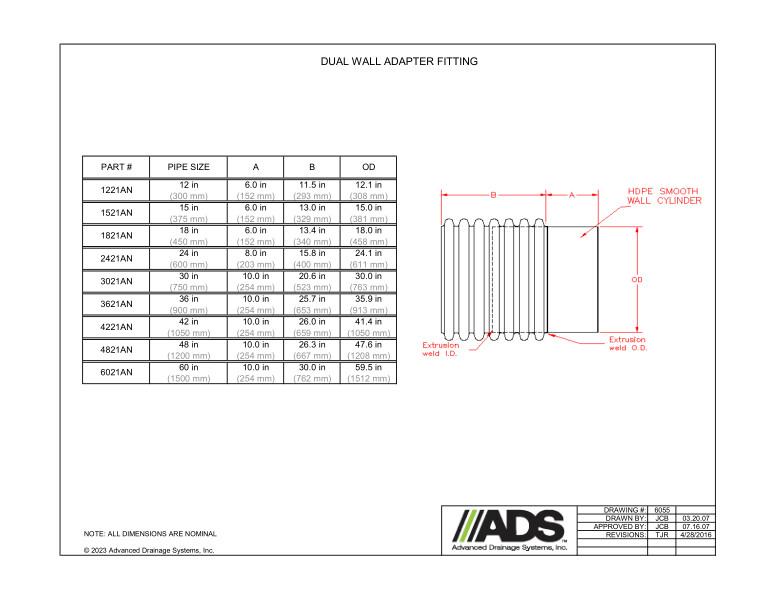

The Dual Wall Adapter Fitting diagram is shown with HDPE smooth wall cylinder, extrusion weld I.D., extrusion weld O.D. and A/B/OD dimensions.

A table with the information for part number, pipe size and A/B/OD sizes is provided.

All dimensions are nominal.
