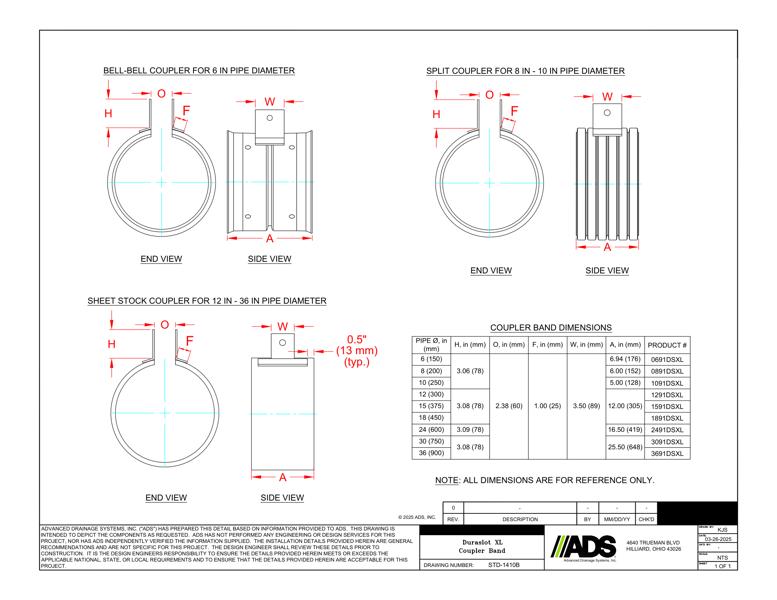

This document shows the 1410B Duraslot XL Coupler Band. Details of the Duraslot couplers with dimensions and dimension tables provided.

The top detail shows the end view/side view of the bell-bell coupler for 6” pipe diameter. The 2nd detail shows the end view/side view of the split coupler for for 8-10” pipe diameter. The 3rd detail shows the end view/side view of the sheet stock coupler for 12”-36” pipe diameter.

The coupler band dimension table shows pipe in mm, various height and length dimensions for H/O/F/W/A and the product number.
