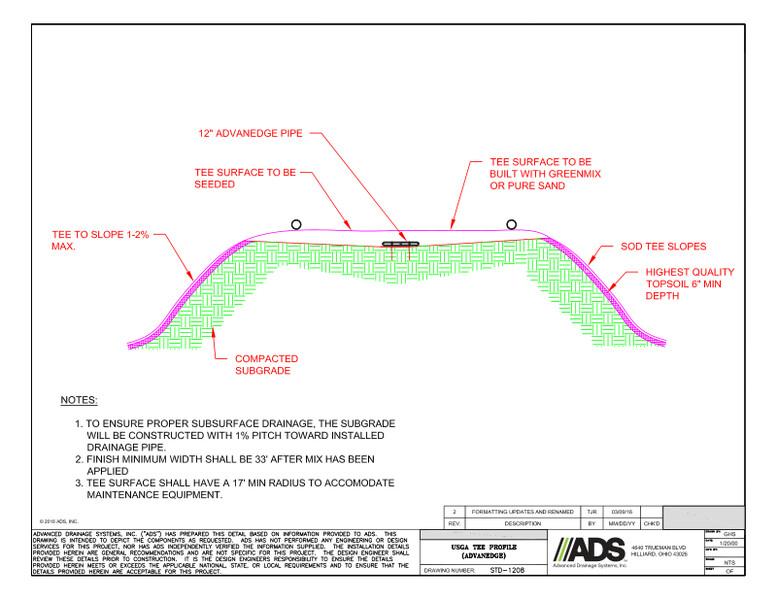

This document is the USGA Tee Profile (AdvanEDGE) Detail. A diagram with descriptions and notes provided.

The USGA Tee diagram shows the 12” AdvanEdge pipe, Tee surface to be seeded, Tee surface to be built with greenmix or pure sand, sod Tee slopes, highest quality topsoil 6” minimum depth, Tee to slope 1-2% maximum and compacted subgrade.

Notes state that to ensure proper subsurface drainage, the subgrade will be constructed with 1% pitch toward installed drainage pipe. Finish minimum width shall be 33’ after mix has been applied. Tee surface shall have a 17’ minimum radius to accommodate maintenance equipment.
