2' x 2' Curb Inlet Standard Grate Assembly Nyloplast Detail

Filename:
2' x 2' Curb Inlet Standard Grate Assembly Nyloplast Detail.pdf

2' x 2' Curb Inlet Standard Grate Assembly Nyloplast Detail

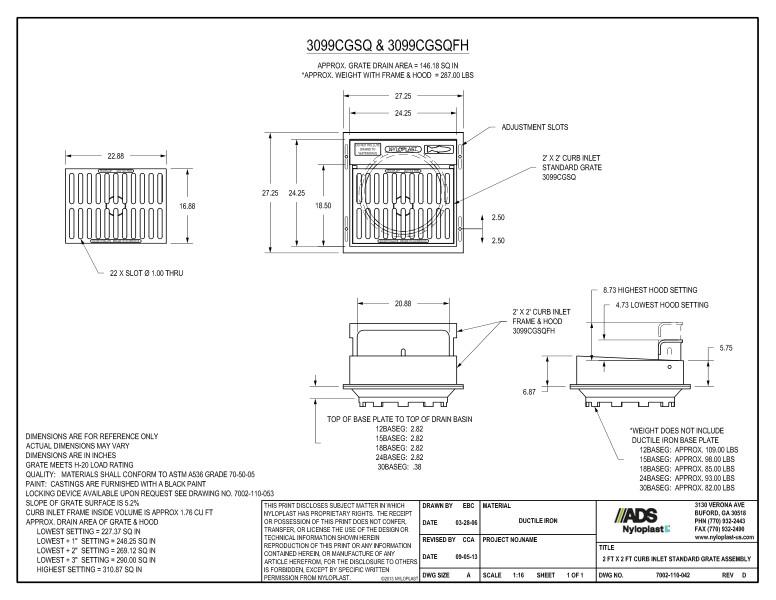

This document is the 2' x 2' Curb Inlet Standard Grate Assembly Nyloplast Detail. Illustrations show the various components with descriptions.

One illustration shows the 2' x 2' Curb Inlet Standard grate with adjustment slots. Another illustration shows the 2' x 2' Curb Inlet frame & hood with top of base plate to top of drain basin. A third illustration shows the highest and lowest hood settings.

Notes mention that dimensions are for reference only and in inches. Grate meets H-20 load rating. Materials shall conform to ASTM A536, grade 70-50-05. Castings are furnished with black paint. Locking device available upon request. Slope of grate surface is 5.2%. Curb inlet frame inside volume is approximately 1.76 cubic feet and the approximate drain area of grate & hood. Various highest and lowest hood settings are included.
