3" - 4" 90 Degree Snap Elbow (HDPE Single Wall Fittings)

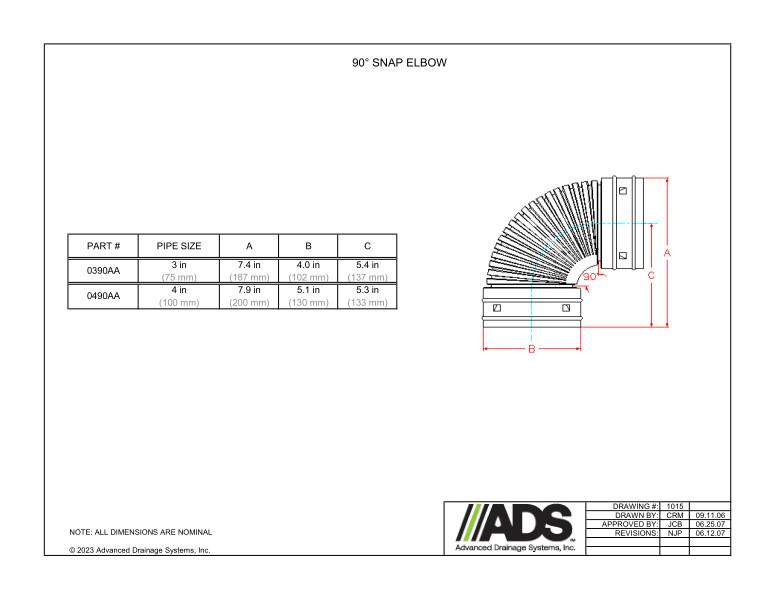

This document is the 3” – 4” 90 Degree Snap Elbow (HDPE Single Wall Fittings). 90 degree snap elbow detail with table shown.

The snap elbow detail shows the A/B/C dimensions and 90 degree arc.

A table has the values for part number, pipe size and A/B/C dimensions.

All dimensions are nominal.
