This document is the 2' x 2' Square Curb Inlet Base Plate General Dimensions Nyloplast Detail. Illustrations show the various components with descriptions.

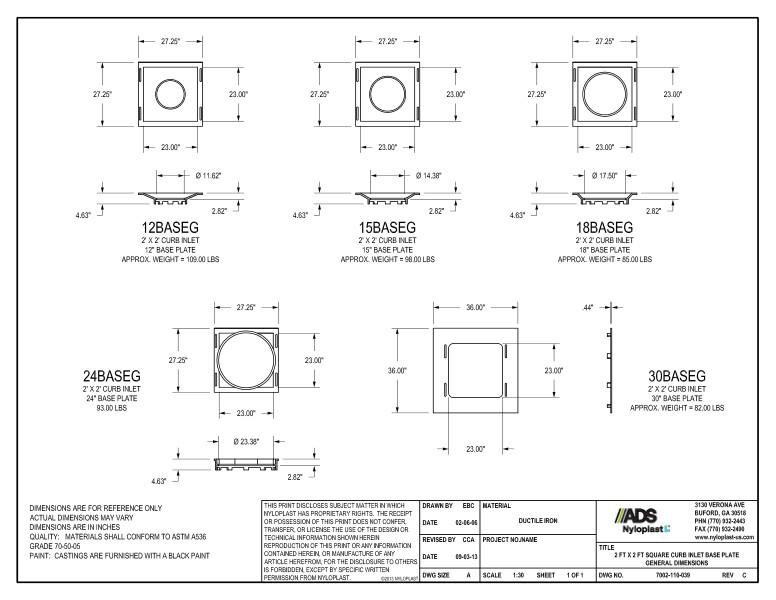

The illustration shows the 12”, 15”, 18”, 24” and 30” base plates, all with 2’ x 2’ curb inlets and corresponding weights.

Notes detail that dimensions are for reference only and in inches. Materials shall conform to ASTM A536 grade 70-50-05. Castings are furnished with a black paint.
