15" Cleanout Access For Stormtech (Non-Traffic Rated With Solid Cover) Nyloplast Detail

Filename:
15" Cleanout Access For Stormtech (Non-Traffic Rated With Solid Cover) Nyloplast Detail.dwg

Download Document (dwg)
15" Cleanout Access For Stormtech (Non-Traffic Rated With Solid Cover) Nyloplast Detail

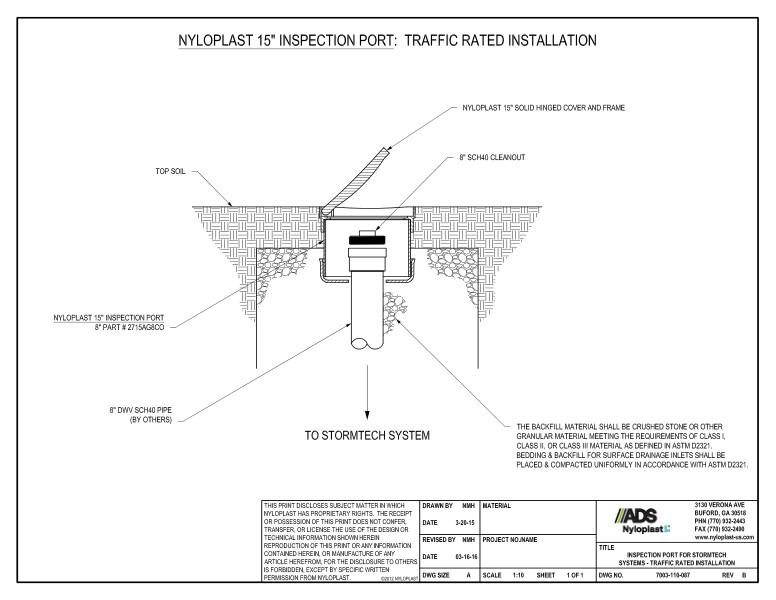

This document is the 15" Cleanout Access For Stormtech Nyloplast Detail. The StormTech inspection port pertaining to traffic rated installation is diagramed.

The diagram shows the Nyloplast 15” solid hinged cover with frame, 8” SCH40 cleanout, top soil layer, the Nyloplast 15” inspection port, 8” DWV SCH40 pipe and where the backfill is located. A downward arrow shows how this unit connects to the StormTech System.

A note about backfill material is that it shall be crushed stone or other granular material meeting the requirements of Class I, Class II or Class III materials as defined in ASTM D2321. Bedding and backfill for surface drainage inlets shall be placed and compacted uniformly in accordance with ASTM D2321.

15" Cleanout Access For Stormtech (Non-Traffic Rated With Solid Cover) Nyloplast Detail
