48" x 4" - 48" x 10" Fabricated 60 Degree Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings)
Filename:
48" x 4" - 48" x 10" Fabricated 60 Degree Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings).pdf
This document is the 48" x 4" - 48" x 10" Fabricated 60 Degree Reducing Wyes (HDPE Dual Wall Fabricated Wyes Fittings). Diagrams with table provided.

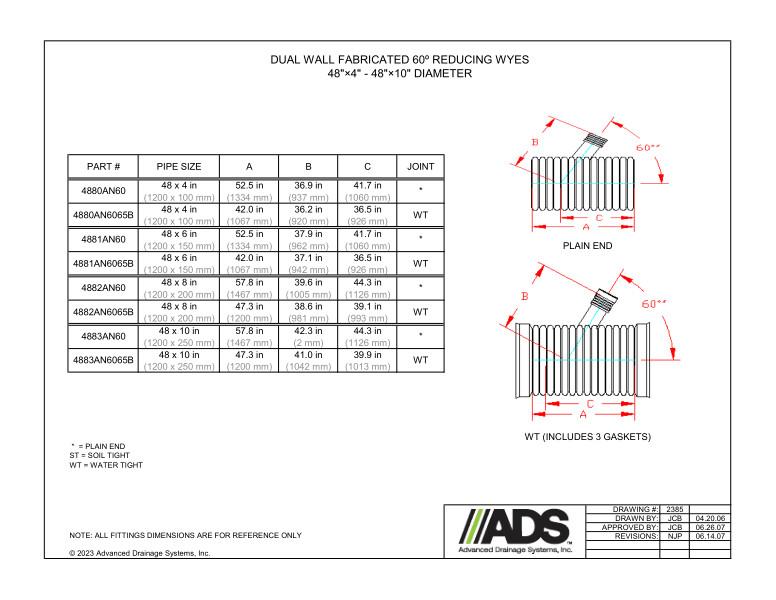

The diagram of the Dual Wall Fabricated 60 Degree Reducing Wyes 48" x 4" - 48" x 10" diameter shows the Plain End Wye with A/B/C dimensions and 60 degree arc. The WT (includes 3 gaskets) Wye is shown with A/B/C dimensions and 60 degree arc.
A table with part number, pipe size and A/B/C/Joint dimensions is provided.
All fittings dimensions are for reference only.
