12" N-12 Dual Wall Elbow - 90 Degree Nyloplast Detail
Filename:
12" N-12 Dual Wall Elbow - 90 Degree Nyloplast Detail.dwg

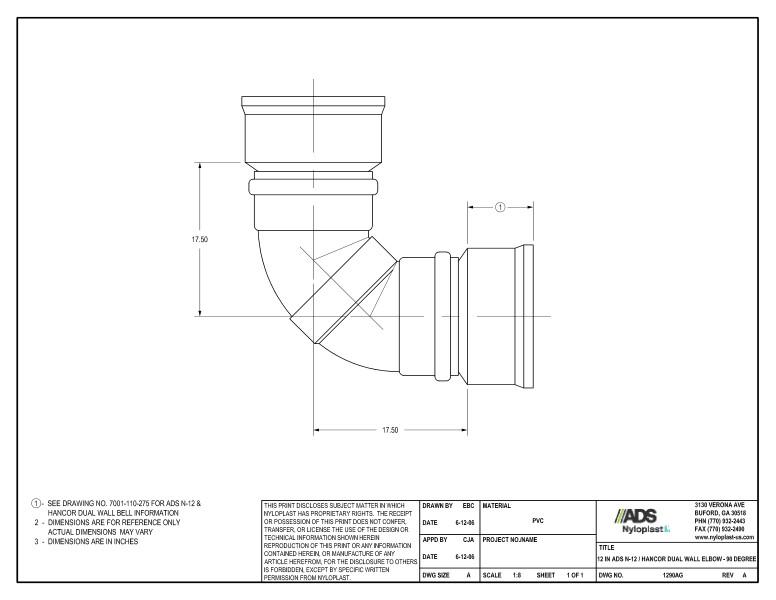

This document is the 12” N-12 Dual Wall Elbow – 90 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
