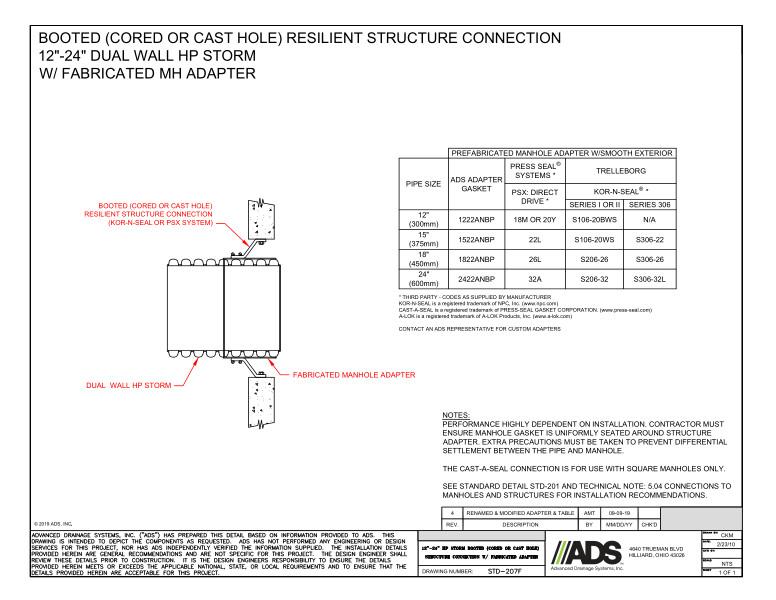

This document is the Booted (Cored or Cast-Hole) Resilient Structure Connection 12”-24” Dual Wall HP Storm with Fabricated MH Adapter. Diagram with table provided.

The diagram of the Booted (Cored or Cast-Hole) Resilient Structure Connection 12”-24” Dual Wall HP Storm with Fabricated MH Adapter shows the booted (Cored or Cast-Hole) resilient structure connection (Kor-N-Seal or PSX System), Dual wall HP storm and fabricated manhole adapter.

The prefabricated manhole adapter with smooth exterior table lists the values for pipe size, ADS adapter gasket, press seal systems/PSX: Direct Drive, Trelleborg/Kor-N-Seal Series I or II and Series 306.

Notes state that performance dependent on installation. Ensure that manhole gasket is uniformly seated around structure adapter to prevent differential settlement between the pipe and manhole. The cast-a-seal connection is for use with square manholes only. See standard detail STD-201 and technical note 5.04 connections to manholes and structures for installation recommendations.
