This document is the HDPE Dual Wall End Caps & Plugs Fittings Manual. Various End Caps and Plug illustrations with reference tables are shown.

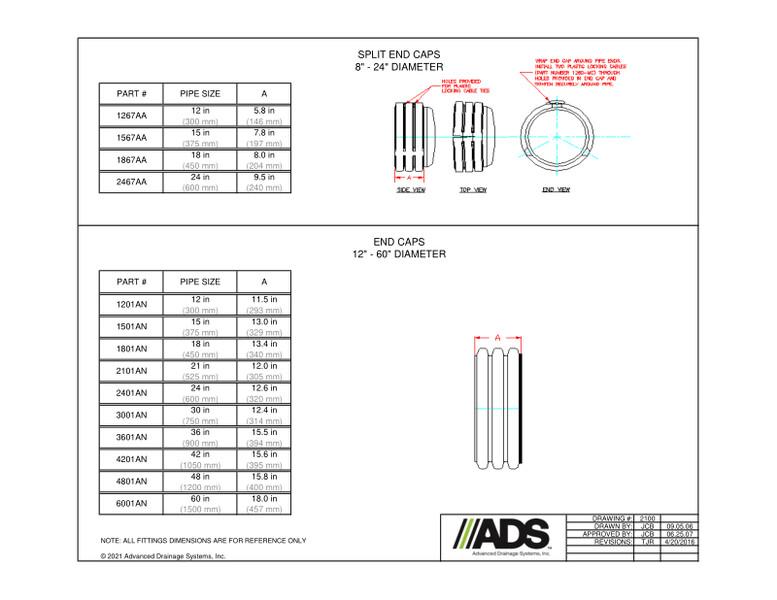

The Split End Caps 8”-24” diameter side view illustration shows the holes provided for plastic locking cable ties. A top view is shown with end view directing to wrap end cap around pipe ends, install 2 plastic locking cables through holes provided in end cap and tighten securely around pipe.

A table with part number, pipe size and A dimensions is provided.

The End Caps 12”-60” diameter side view illustration is shown. A table with part number, pipe size and A dimensions is provided.

The WT End Caps 12”-60” diameter illustrations show the 12”-30” gasket included and 36”-60” gasket included. Tables with part number, pipe size and A dimensions are provided.

End Plugs 4”-60” diameter plan view illustration is shown with a front view showing the rubber gasket. A table with part number and pipe size is provided.

The Dual Wall Snap End Cap 4”-10” diameter side view illustration is shown. A table with part number, pipe size and A/B/C dimensions is provided.

All fittings are for reference only.
