Nyloplast Connection to N-12 Dual Wall Pipe with Slope Detail

Filename:
Nyloplast Connection to N-12 Dual Wall Pipe with Slope Detail.dwg

Download Document (dwg)
Nyloplast Connection to N-12 Dual Wall Pipe with Slope Detail

This document is the Nyloplast Connection to N-12 Dual Wall Pipe with Slope Detail. Illustrations with descriptions shown.

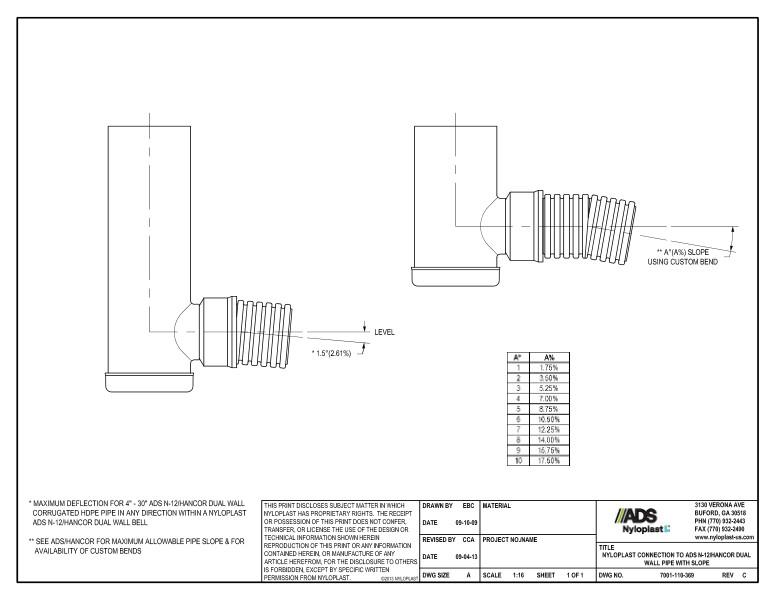

The two details show the various parts and dimensions of the wall pipe. Pipe 1 shows the level and angle, pipe 2 shows the A slope using custom bend.

A chart with A degrees and percentages 1-10 is included.

Notes state that maximum deflection for 4” - 30” ADS N-12/Hancor dual wall corrugated HDPE pipe in any direction within a nyloplast ADS N-12/Hancor dual wall bell.
