Sanded Manhole Adapter - N-12 Wall Bell x SWR Spigot Nyloplast Detail

Filename:
Sanded Manhole Adapter - N-12 Wall Bell x SWR Spigot Nyloplast Detail.dwg

Download Document (dwg)
Sanded Manhole Adapter - N-12 Wall Bell x SWR Spigot Nyloplast Detail

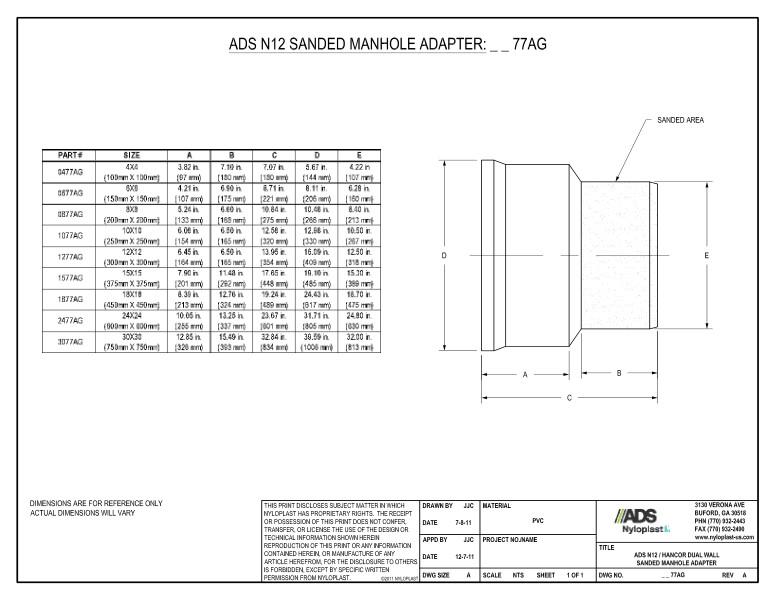

This document is the Sanded Manhole Adapter - N-12 Dual Wall Bell x SWR Spigot Nyloplast Detail. Part numbers, dimensions and nyloplast illustration with sanded area shown.

A chart details the part numbers 0477AG, 0677AG, 0877AG, 1077AG, 1277AG, 1577AG, 1877AG, 2477AG and 3077AG with corresponding size and A/B/C/D/E dimensions.

An illustration showing the dimensions with sanded area is provided.

A note states that dimensions are for reference only.
