12" - 60" Double Wide Field Repair Coupler (HDPE Dual Wall Miscellaneous Fittings)

Filename:
12" - 60" Double Wide Field Repair Coupler (HDPE Dual Wall Miscellaneous Fittings).pdf

Download Document (pdf) View in Browser
12" - 60" Double Wide Field Repair Coupler (HDPE Dual Wall Miscellaneous Fittings)

This document is the 12” x 60” Double Wide Field Repair Coupler (HDPE Dual Wall Miscellaneous Fittings). A diagram with table provided.

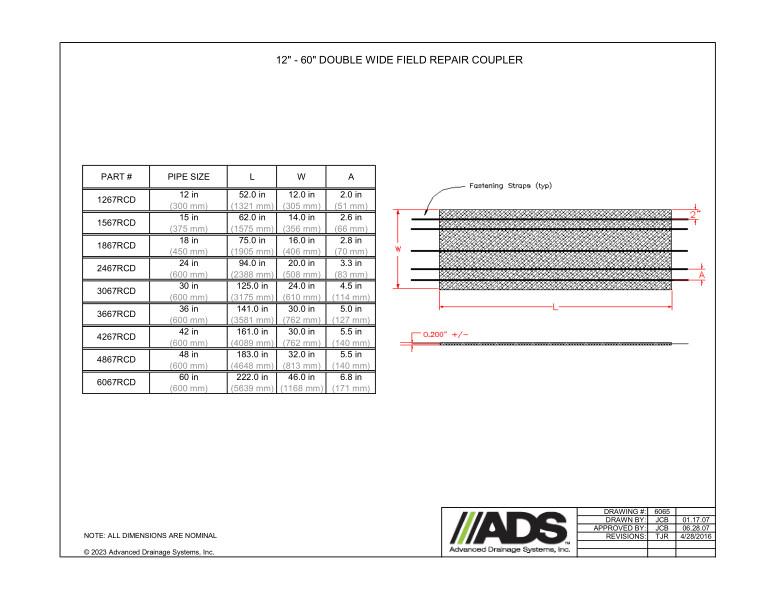

The 12” x 60” Double Wide Field Repair Coupler diagram is shown with fastening straps (typ) and A/W/L dimensions.

A table with the information for part number, pipe size and L/W/A sizes is provided.

All dimensions are nominal.

12" - 60" Double Wide Field Repair Coupler (HDPE Dual Wall Miscellaneous Fittings)
