2' x 3' Road & Highway Grate Extension Nyloplast Detail

Filename:
2' x 3' Road & Highway Grate Extension Nyloplast Detail.pdf

Download Document (pdf) View in Browser
2' x 3' Road & Highway Grate Extension Nyloplast Detail

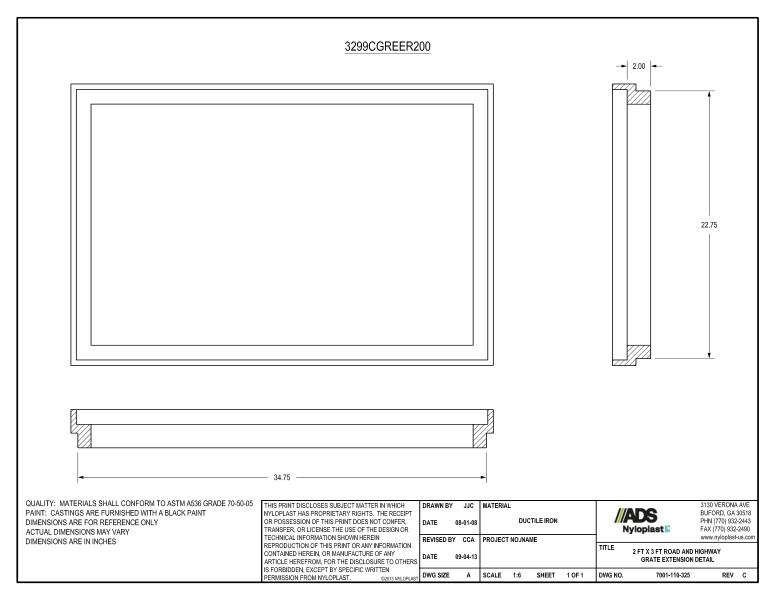

This document is the 2’ x 3’ Road and Highway Grate Extension Nyloplast Detail. 3 nyloplast illustrations with dimensions shown.

The 3 details show the various angles of the grate extension with dimensions.

Materials shall conform to ASTM A536 grade 70-50-05. The castings are furnished with a black paint. Dimensions are for reference only and in inches.

2' x 3' Road & Highway Grate Extension Nyloplast Detail
