Drain Basin with Inserta-Tee Quick Spec Installation Nyloplast Detail

Filename:
Drain Basin with Inserta-Tee Quick Spec Installation Nyloplast Detail.dwg

Drain Basin with Inserta-Tee Quick Spec Installation Nyloplast Detail

This document is the Drain Basin with Inserta-Tee Quick Spec Installation Nyloplast Detail. Illustration with descriptions and notes shown.

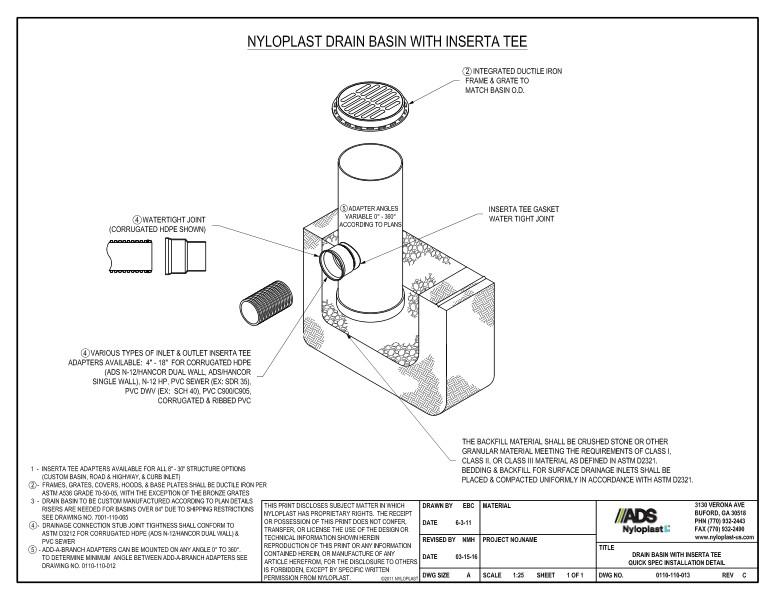

The nyloplast Drain Basin with Inserta-Tee shows the integrated ductile iron frame & grate to match basin, Inserta-Tee gasket water tight joint, variable adapter angles, water tight joint, backfill material shall be crushed stone or other granular material and various types of inlet/outlet add-a-branch adapters.

Note 1 states that Inserta-Tee available for all 8” – 36” structure options. Note 2 says that frames, grate, cover, hood and base plates shall be ductile iron. Note 3 states that drain basins are to be custom manufactured. Note 4 explains that drainage connection stub joint tightness shall conform to ASTM D3212. Note 5 states that Add-A-Branch adapters can be mounted on any angle.
