36"-60" Fabricated Soil Tight Plain End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings)
Filename:
36"-60" Fabricated Soil Tight Plain End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings).pdf
This document is the 36" - 60" Fabricated Soil Tight Plain End Single Manifolds (HDPE Dual Wall Fabricated Manifolds Fittings). A diagram with table provided.

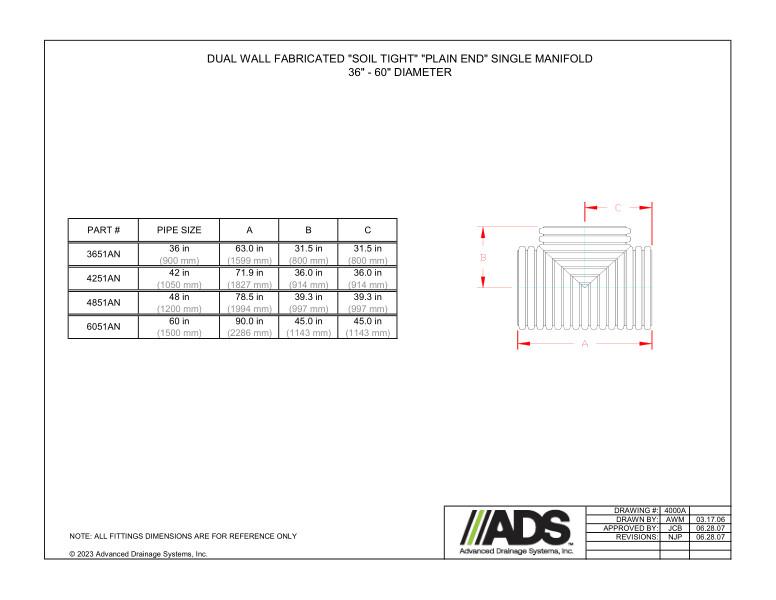

The dual wall Fabricated “Soil Tight” “Plain End” Single Manifold 36" - 60" diameter is shown in a diagram that shows A/B/C dimensions.
A table with the information for part number, pipe size and A/B/C sizes is provided.
All fittings dimensions are for reference only.
