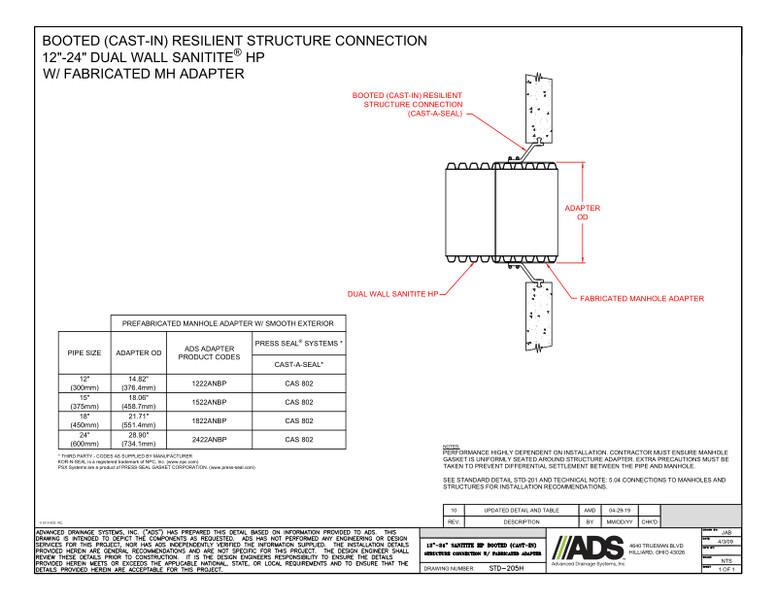

This document is the 205H 12-24 SaniTite HP Booted (Cast-In) Structure Connection with Fabricated Adapter Detail. Diagram and chart provided.

The diagram shows the Booted (Cast-In) Resilient Structure Connection (Cast-A-Seal), adapter OD, Fabricated manhole cover and dual wall SaniTite HP.

A chart provides values for pipe size, adapter OD, ADS adapter product codes, Cast-A-Seal and Press Seal systems.

Notes state that performance is highly dependent on installation. Manhole gasket must be uniformly seated around structure adapter. Take precautions to prevent differential settlement between the pipe and manhole.
