12 x 8 N-12 Dual Wall Increaser Nyloplast Detail
Filename:
12 x 8 N-12 Dual Wall Increaser Nyloplast Detail.dwg
This document is the 12 x 8 N-12 Dual Wall Increaser Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references Hancor Dual Wall Bell for more information. A note on dimension 2 references a drawing for water tight SWAGE joint detail. Note 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

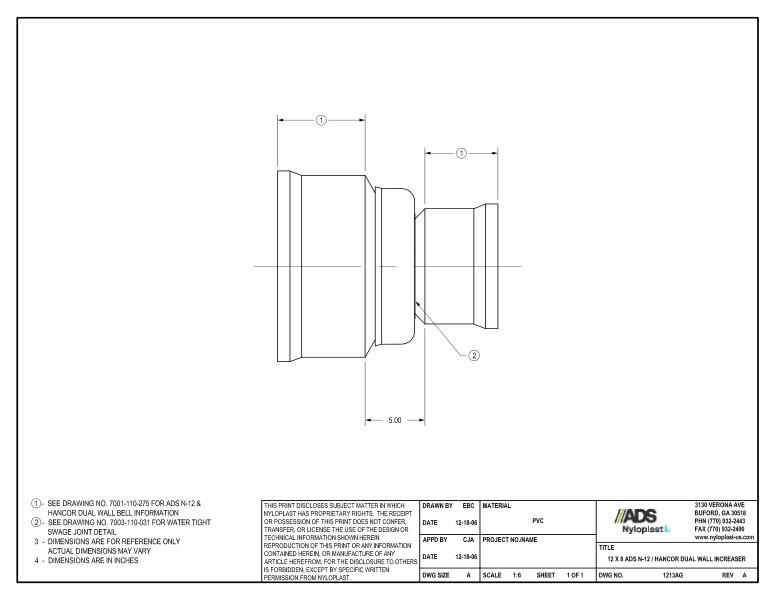

An illustration showing the dimensions is provided.
