8" N-12 Dual Wall Cleanout Nyloplast Detail

Filename:
8" N-12 Dual Wall Cleanout Nyloplast Detail.dwg

Download Document (dwg)
8" N-12 Dual Wall Cleanout Nyloplast Detail

This document is the 8” N-12 Dual Wall Cleanout Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

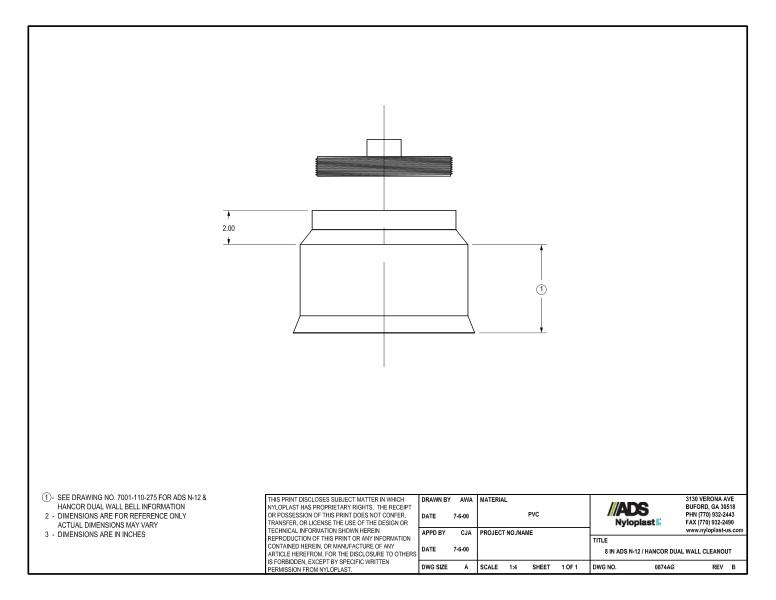

An illustration showing the dimensions is provided.

8" N-12 Dual Wall Cleanout Nyloplast Detail
