24" HP Elbow - 22.5 Degree Nyloplast Detail
Filename:
24" HP Elbow - 22.5 Degree Nyloplast Detail.dwg
![24" HP Elbow - 22.5 Degree Nyloplast Detail](https://assets.adspipe.com/m/43236203987da070/webimage-24-HP-Elbow-22-5-Degree-Nyloplast-Detail.jpg)

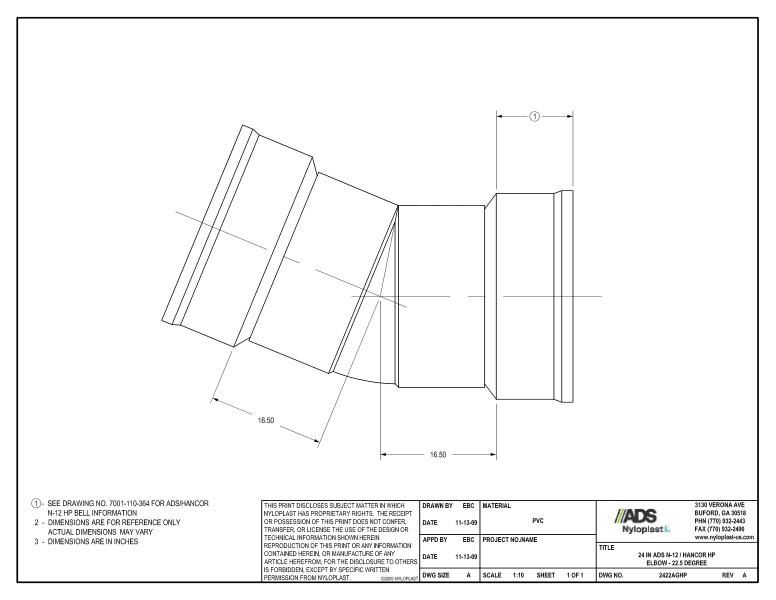

This document is the 24” HP Elbow – 22.5 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.
A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.
An illustration showing the dimensions is provided.
