15" N-12 Dual Wall Stop Coupling Nyloplast Detail

Filename:
15" N-12 Dual Wall Stop Coupling Nyloplast Detail.pdf

Download Document (pdf) View in Browser
15" N-12 Dual Wall Stop Coupling Nyloplast Detail

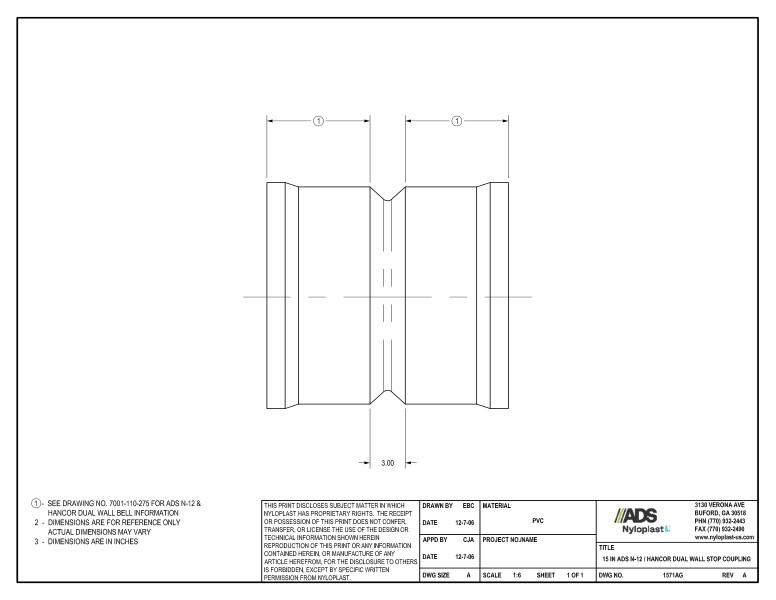

This document is the 15” N-12 Dual Wall Stop Coupling Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

15" N-12 Dual Wall Stop Coupling Nyloplast Detail
