12" - 30" HP Universal Bell Information Nyloplast Detail

Filename:
12" - 30" HP Universal Bell Information Nyloplast Detail.dwg

Download Document (dwg)
12" - 30" HP Universal Bell Information Nyloplast Detail

This document is the 12" - 30" HP Universal Bell Information Nyloplast Detail. Illustration with dimension chart shown.

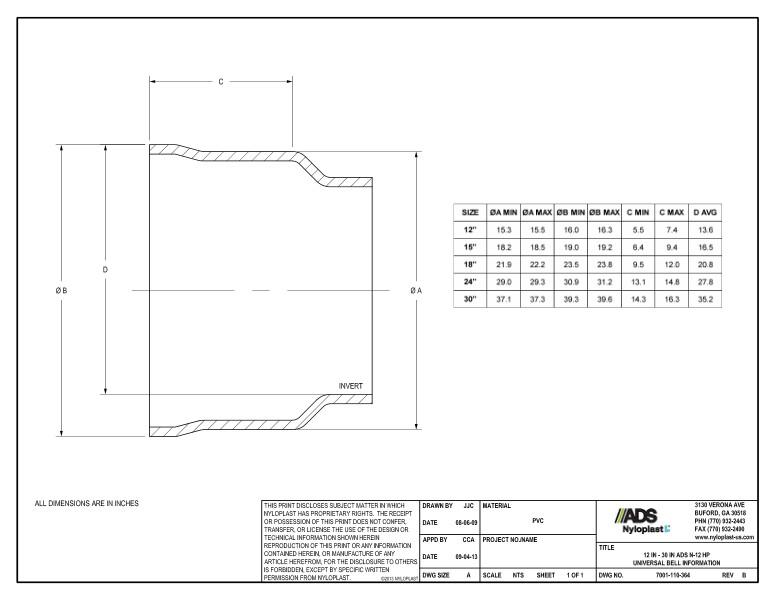

An illustration shows the A – D dimensions and invert. The chart details sizes 12”, 15”, 18” 24” & 30” with corresponding A MIN, A MAX, B MIN, B MAX, C MIN, C MAX & D AVG measurements.

A note specifies that dimensions are in inches.
