8" Solid Cover Assembly (Drain Basin) Nyloplast Detail

Filename:
8" Solid Cover Assembly (Drain Basin) Nyloplast Detail.pdf

Download Document (pdf) View in Browser
8" Solid Cover Assembly (Drain Basin) Nyloplast Detail

This document is the 8" Solid Cover Assembly (Drain Basin) Nyloplast Detail. It shows the nyloplast grate and frame with dimensions.

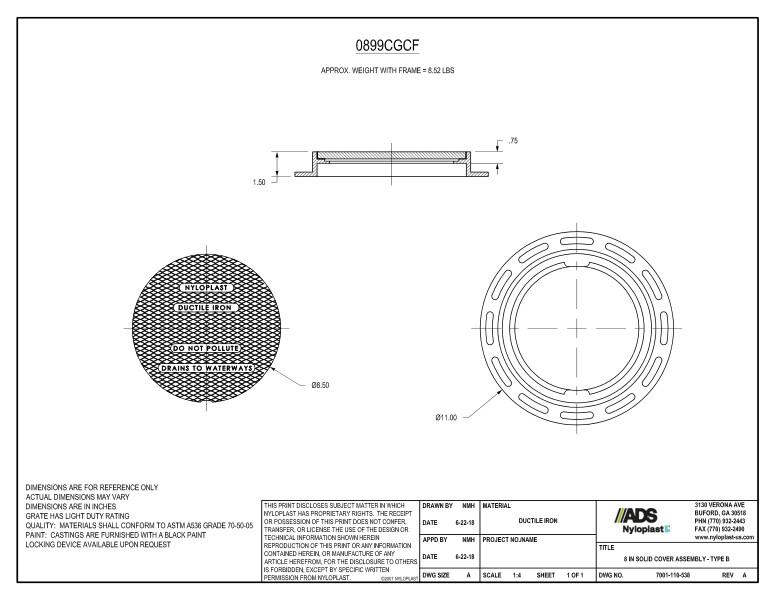

The top down illustration shows the nyloplast grate with dimensions with approximate weight with frame of 8.52 LBS. A top view of the frame and side view is shown.

Notes detail that dimensions are for reference only and in inches. Grate has light duty rating. Materials shall conform per ASTM A536 grade 70-50-05. Castings are furnished with a black paint. Locking device available upon request.

8" Solid Cover Assembly (Drain Basin) Nyloplast Detail
