30" HP Elbow - 90 Degree Nyloplast Detail

Filename:
30" HP Elbow - 90 Degree Nyloplast Detail.dwg

Download Document (dwg)
30" HP Elbow - 90 Degree Nyloplast Detail

This document is the 30” HP Elbow – 90 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references ADS/Hancor N-12 HP Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

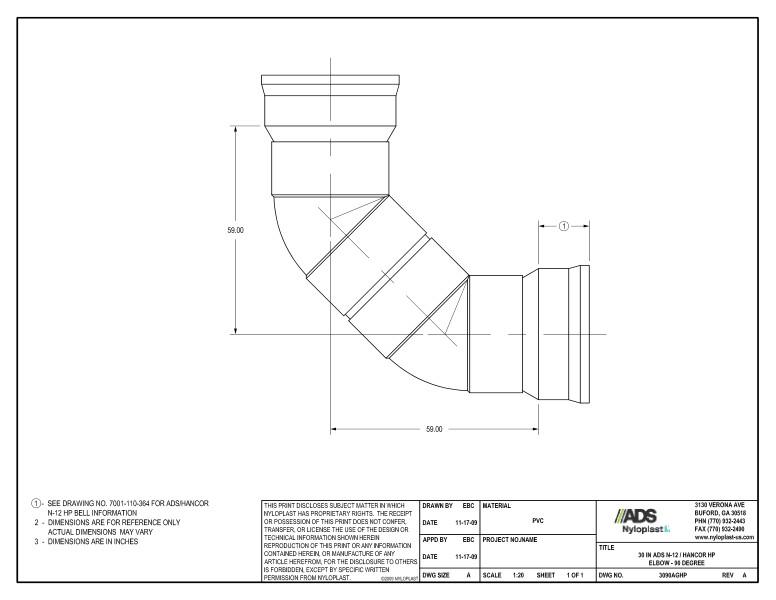

An illustration showing the dimensions is provided.

30" HP Elbow - 90 Degree Nyloplast Detail
