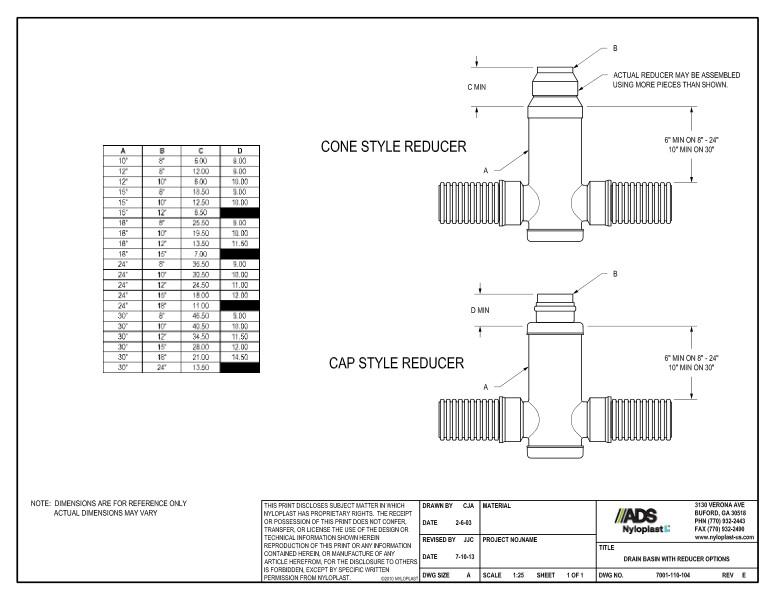

This document is the Drain Basin with Reducer Options Nyloplast Detail. Cone & Cap Style Reducer illustrations shown. Chart with dimensions included.

The cone style reducer notes that the actual reducer may be assembled using more pieces than shown. Cap style reducer shows minimums.

The chart features A, B, C & D columns with dimensions of various sizes.

A note says that dimensions are for reference only.
