12" N-12 Dual Wall Elbow - 22.5 Degree Nyloplast Detail

Filename:
12" N-12 Dual Wall Elbow - 22.5 Degree Nyloplast Detail .dwg

Download Document (dwg)
12" N-12 Dual Wall Elbow - 22.5 Degree Nyloplast Detail

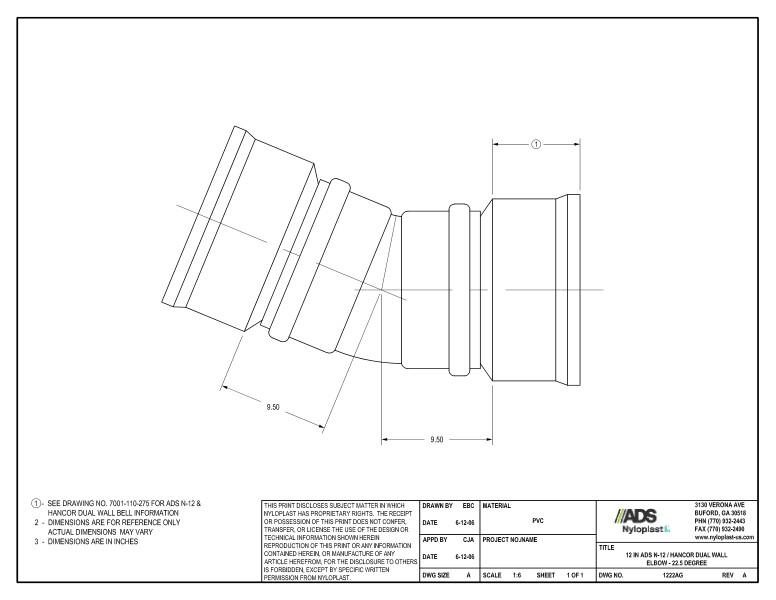

This document is the 12” N-12 Dual Wall Elbow – 22.5 Degree Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 states that dimensions are for reference only. Note 3 specifies that dimensions are in inches.

An illustration showing the dimensions is provided

12" N-12 Dual Wall Elbow - 22.5 Degree Nyloplast Detail
