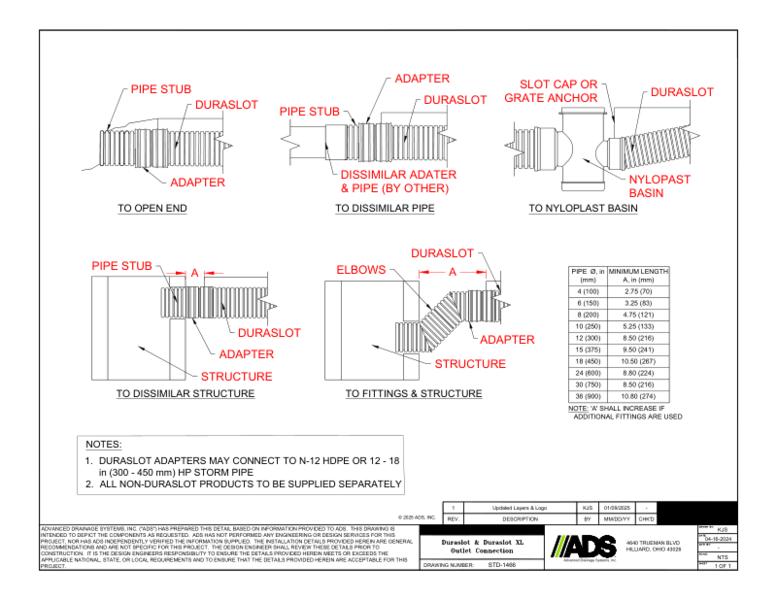

This document shows the 1466 Duraslot & Duraslot XL Outlet Connection. Details of the Duraslots and pipe table with notes provided.

The detail to open end shows the location of the pipe stub, Duraslot and adapter. The detail to dissimilar pipe shows the location of the pipe stub, Duraslot and dissimilar adapter. The detail to Nyloplast basin shows the location of the slot cap or grate anchor, Duraslot and Nyloplast basin. The detail to dissimilar structure shows the location of the pipe stub, Duraslot, structure and adapter. The detail to fittings & structure shows the location of the elbows, Duraslot, structure and adapter.

A dimension table listing various pipe mm and minimum length provided.

Notes state that Duraslot adapters may connect to N-12 HDPE or 12-18” Hp storm pipe. All non-Duraslot products separate.
