1411 Duraslot & Duraslot XL End Cap
Filename:
1411 Duraslot & Duraslot XL End Cap.pdf
This document shows the 1411 Duraslot & Duraslot XL End Cap. Details of the various Duraslot end caps with dimension charts and notes provided.

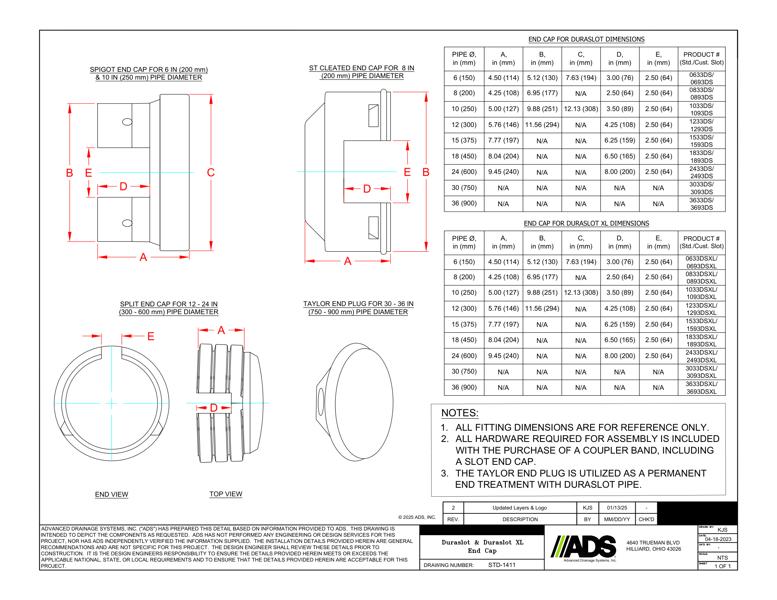

The details show the Duraslot ST Cleated End Cap for 8” pipe diameter, Spigot End Cap for 6”-10” pipe diameter, Split End Cap for 12”-24” pipe diameter with end view and side view and Taylor End Plug for 30” & 36” pipe diameter. All details feature A/B/C/D/E dimensions.
A chart has the information for End Cap for Duraslot dimensions for pipe inches, A/B/C/D/E dimensions and product number. A 2nd chart has the information for End Caps for Duraslot XL dimensions for pipe inches, A/B/C/D/E dimensions and product number.
Notes state that all fitting dimensions are for reference only and all hardware required for assembly is included with the purchase of a coupler band, including the slot end cap. The Taylor end plug is utilized as a permanent end treatment with Duraslot pipe.
