8" x 4" - 12" x 6" Injection Molded Sweeping Tees (HDPE Dual Wall Injection Molded Tees Fittings)
Filename:
8" x 4" - 12" x 6" Injection Molded Sweeping Tees (HDPE Dual Wall Injection Molded Tees Fittings).pdf

This document is the 8" x 4" - 12" x 6" Injection Molded Sweeping Tees (HDPE Dual Wall Injection Molded Tees Fittings). A diagram with table and notes provided.

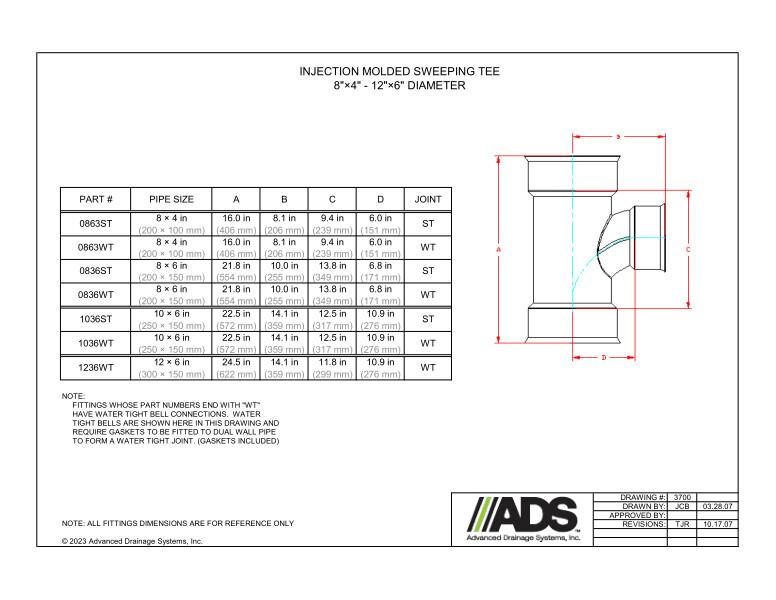

The illustration of the Tee shows the A/B/C/D dimensions.
A table with part number, pipe size and A/B/C/D/Joint dimensions is provided.
Fittings whose part numbers end with “WT” have water tight bell connections. Water tight bells require gaskets to be fitted to dual wall pipe to form a water tight joint. Gaskets are included. All fittings dimensions are for reference only.
