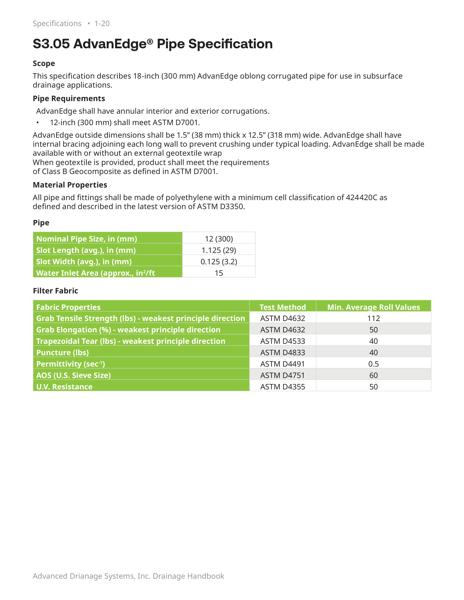

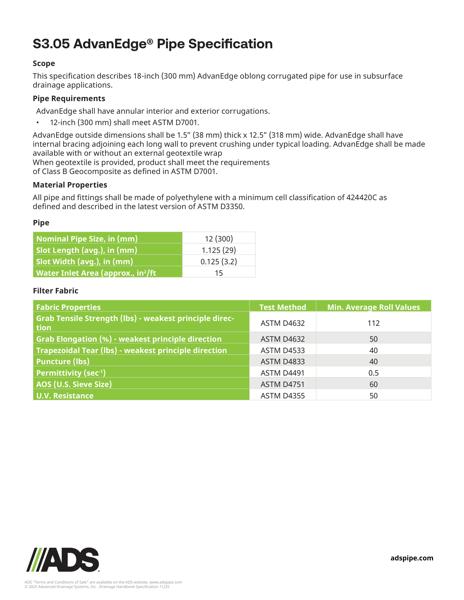

This document is the AdvanEdge Pipe Specification. Scope, product requirements and material properties explained. Perforations and Filter Fabric charts included.

This specification describes 12-inch (300 mm) ADS AdvanEdge oblong corrugated pipe for use in subsurface drainage applications.

ADS AdvanEdge shall have annular interior and exterior corrugations. 12-inch (300 mm) shall meet ASTM D7001. ADS AdvanEdge outside dimensions shall be 1.5” (38 mm) thick x 12.5” (318 mm) wide. AdvanEdge shall have internal bracing adjoining each long wall to prevent crushing under typical loading.

AdvanEdge shall be made available with or without an external geotextile wrap. When geotextile is provided, product shall meet the requirements of Class B Geocomposite as defined in ASTM D7001.

All pipe and fittings shall be made of polyethylene with a minimum cell classification of 424420C as defined and described in the latest version of ASTM D3350.

A Perforations chart with sizes and a Filter Fabric chart showing fabric properties, test method and minimum average roll values included.
