8" - 30" Body to Adapter Dimensions Nyloplast Detail

Filename:
8" - 30" Body to Adapter Dimensions Nyloplast Detail .dwg

Download Document (dwg)
8" - 30" Body to Adapter Dimensions Nyloplast Detail

This document is the 8" - 30" Body to Adapter Dimensions Nyloplast Detail. Illustrations with size chart shown.

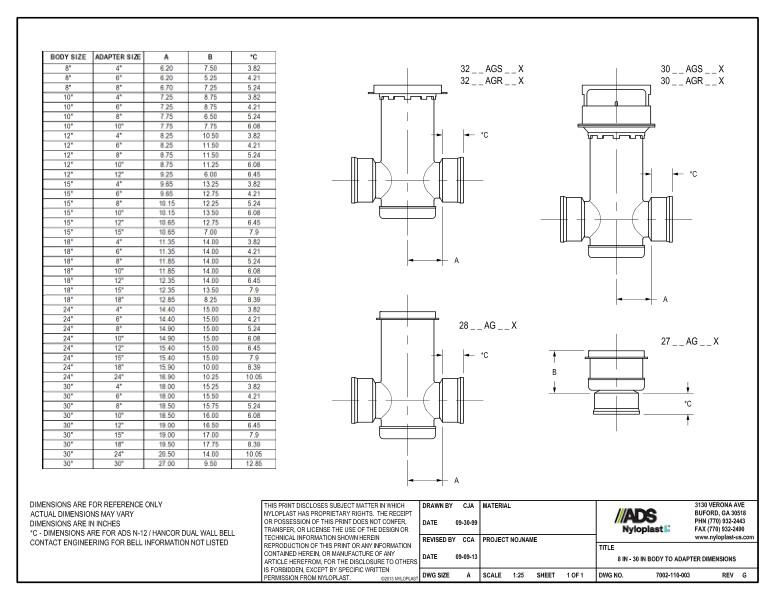

4 illustrations show the body and adapters with corresponding chart. The chart features 8" - 30" Body Size with corresponding adapter size and A, B, & C measurements.

Notes state that dimensions are for reference only and in inches. C dimensions are for N-12/Hancor Dual Wall Bell.
