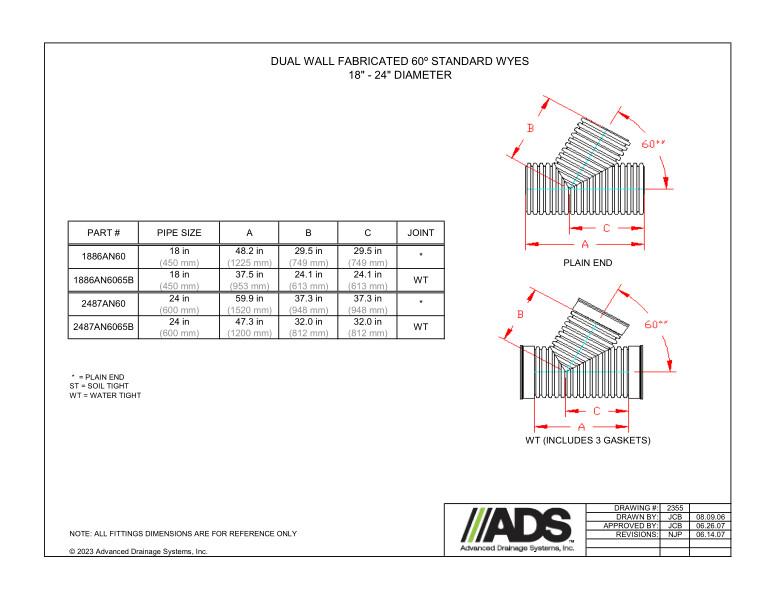

This document is the 18" x 24" Fabricated 60 Degree Wyes (HDPE Dual Wall Fabricated Wyes Fittings). Diagrams with table provided.

The diagram of the Dual Wall Fabricated 60 Degree Standard Wyes 18" x 24" diameter shows the Plain End Wye with A/B/C dimensions and 60 degree arc. The WT (includes 3 gaskets) Wye is shown with A/B/C dimensions and 60 degree arc.

A table with part number, pipe size and A/B/C/Joint dimensions is provided.

All fittings dimensions are for reference only.
