1400B Duraslot XL Pipe Standard Slot Height

Filename:
1400B Duraslot XL Pipe Standard Slot Height.pdf

Download Document (pdf) View in Browser
1400B Duraslot XL Pipe Standard Slot Height

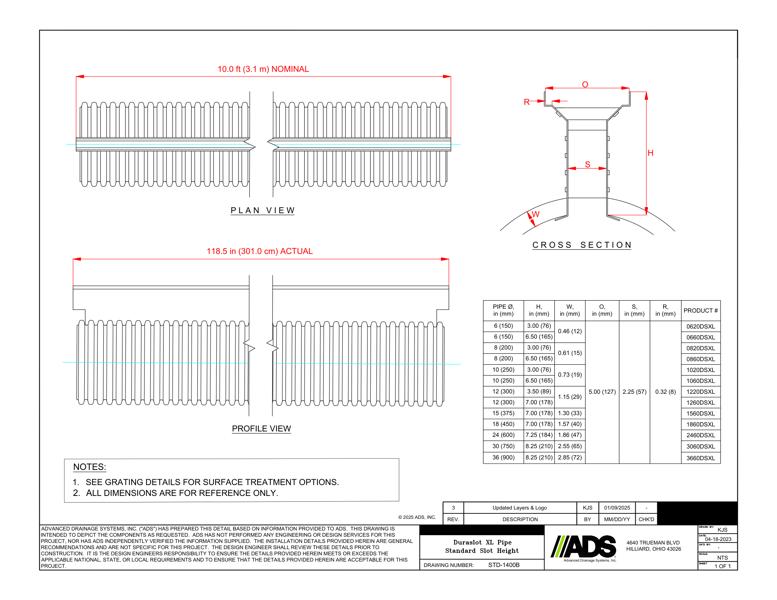

This document shows the 1400B Duraslot XL Pipe Standard Slot Height. Plan view, profile view and cross section details with dimension chart and note provided.

The plan view detail shows the width diameter, the profile view shows the height diameter and the cross section shows the O/R/S/H/W dimensions.

A chart has the information for pipe inches from 6” to 36”, O/R/S/H/W dimensions and product number.

A note recommends seeing grating details for surface treatment options.
