4 x 4 N-12 Dual Wall Tee Wye Nyloplast Detail

Filename:
4 x 4 N-12 Dual Wall Tee Wye Nyloplast Detail.pdf

Download Document (pdf) View in Browser
4 x 4 N-12 Dual Wall Tee Wye Nyloplast Detail

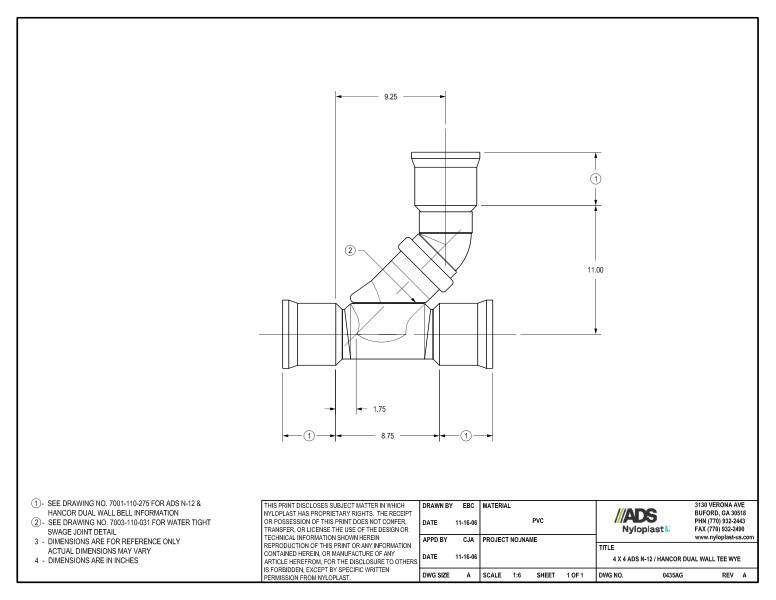

This document is the 4 x 4 N-12 Dual Wall Tee Wye Nyloplast Detail. Dimensions and nyloplast illustration shown.

A note on dimension 1 references Hancor Dual Wall Bell for more information. Note 2 refers to a drawing for water tight SWAGE joint detail. A note on dimension 3 states that dimensions are for reference only. Note 4 specifies that dimensions are in inches.

An illustration showing the dimensions is provided.

4 x 4 N-12 Dual Wall Tee Wye Nyloplast Detail
