44" x 36" Baseplate for 24" & 30" Drain Basins Nyloplast Detail

Filename:
44" x 36" Baseplate for 24" & 30" Drain Basins Nyloplast Detail.pdf

Download Document (pdf) View in Browser
44" x 36" Baseplate for 24" & 30" Drain Basins Nyloplast Detail

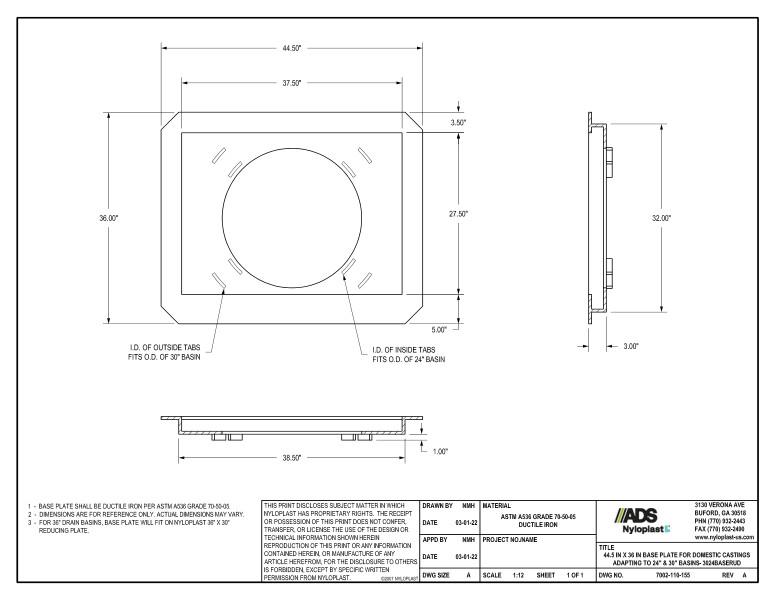

This document is the 44" x 36" Baseplate for 24" & 30" Drain Basins Nyloplast Detail. Dimensions and basin illustration shown.

3 details show the dimensions of the drain basin. Notes include: base plate shall be ductile iron, dimensions are for reference only and for 36” drain basins, base plate will fit on nyloplast 36” x 30” reducing plate.

44" x 36" Baseplate for 24" & 30" Drain Basins Nyloplast Detail
