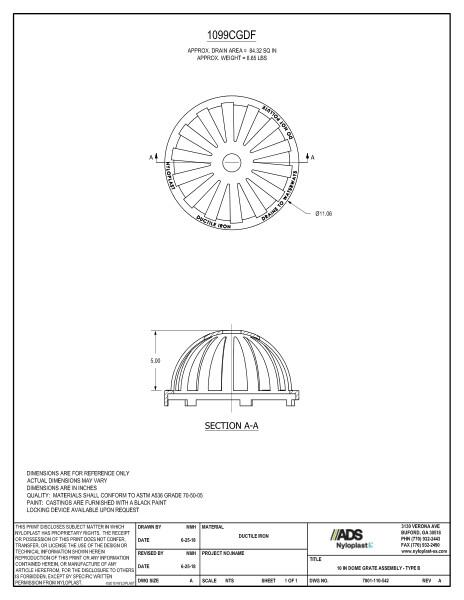

This document is the 10" Dome Grate Assembly (Drain Basin) Nyloplast Detail. It shows the nyloplast ductile dome grate with dimensions.

The illustration shows the nyloplast ductile iron grate with dimensions for approximate drain area of 84.32 SQ inches and approximate weight of 8.85 LBS. A top and side view is shown.

Notes detail that dimensions are for reference only and in inches. Materials shall be ductile iron per ASTM A536 grade 70-50-05. Grate has light duty rating. Castings are furnished with a black paint. The locking device is available upon request.
